Technical specifications
- Motor power
- 3,600W
- Airflow
- 11,166 LPM
- Drum capacity
- 100L
- Weight
- 32kg
- Voltage
- 220–240V
- Setup
- anti-conductive, carbon fibre poles, clamped connection, rigid neck
Full product description

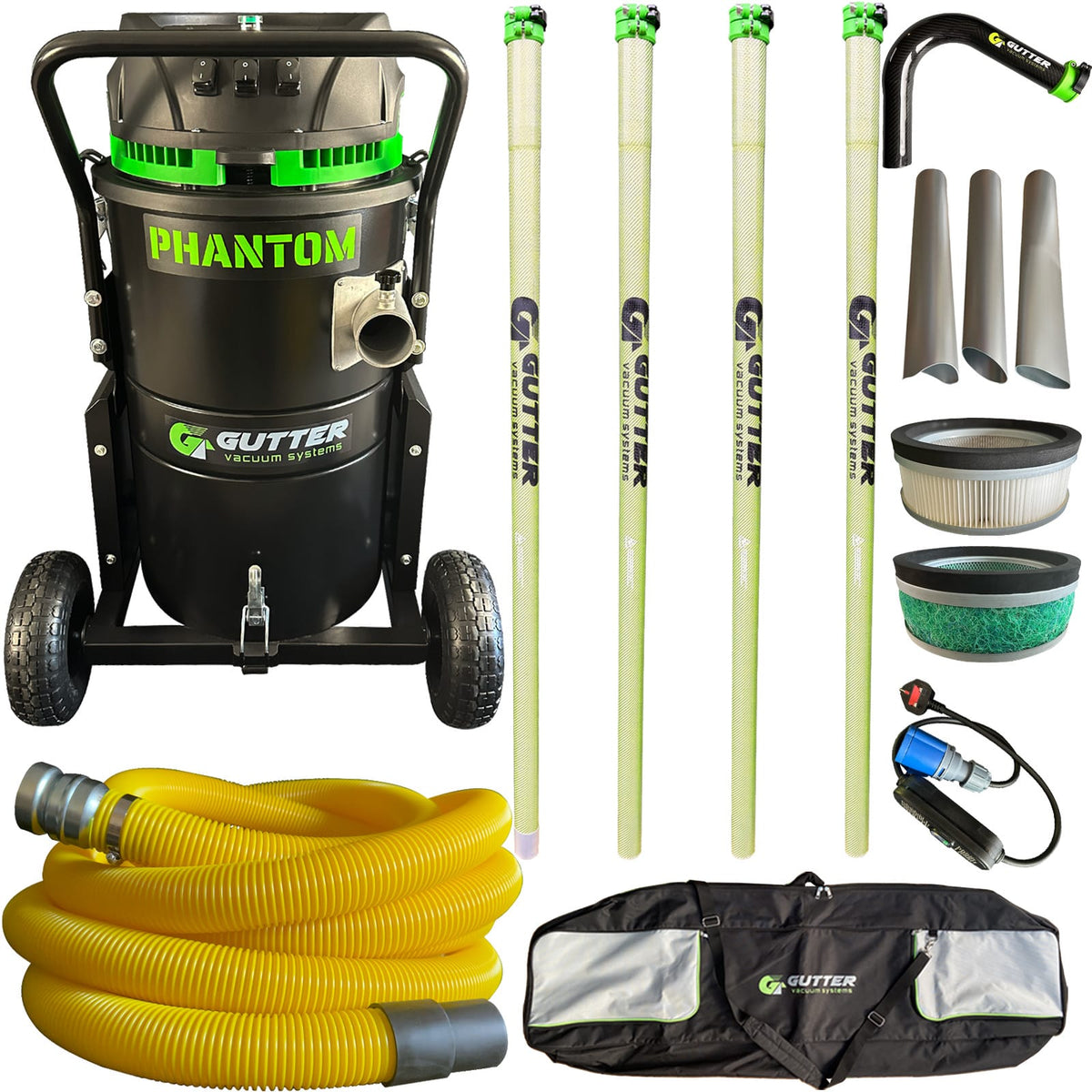

Introducing the groundbreaking Phantom Gutter Vacuum, a powerhouse that outshines all others! Uniquely designed by GVS for the commercial and industrial sectors, this triple motor vacuum is a first of its kind. This package includes our exclusive 51mm carbon fibre rigid neck expertly teamed with our superior Anti Conductive clamped carbon gutter vacuum poles for a height reach of your choice between 20ft to 40ft.
Equipped with a formidable 3600W triple motor, the Phantom features an innovative electronic float valve that automatically shuts off power as the drum fills. Additionally, the Phantom is designed with a lever to redirect airflow, enabling the white HEPA filter to be cleaned by blowing dust off when activated.
Switching from the HEPA filter to the wet-use filter is as simple as rotating the float valve unit. The built-in deflector ensures the filter is shielded from incoming debris.

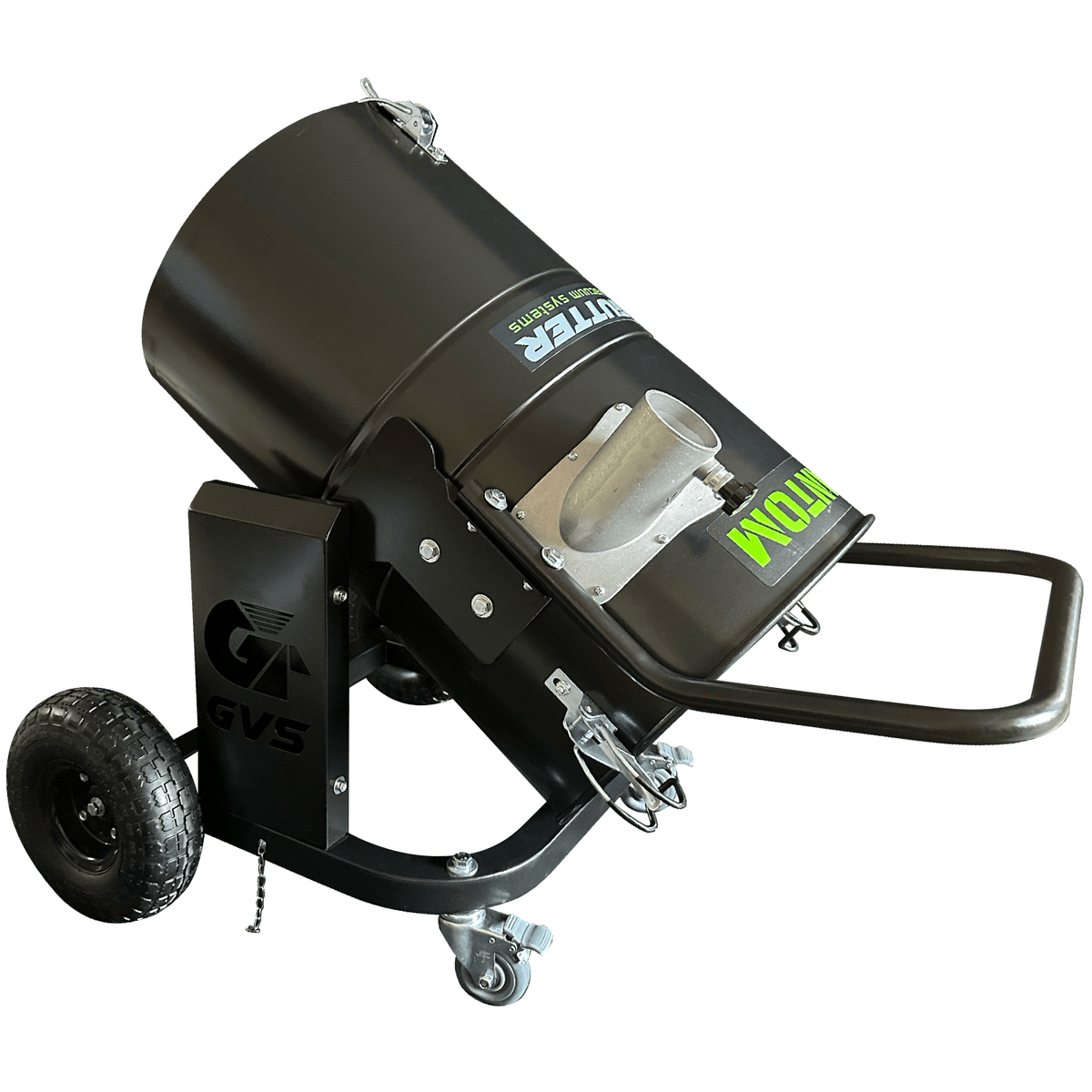

The Phantom’s heavy-duty tipping frame, combined with puncture-proof rear wheels and fully rotational locking castors, offers unmatched durability and maneuverability.
For power versatility, the Phantom comes with a 240V 16A plug for generator use (minimum 5.5kVA) and a built-in RCD adaptor with a 13A plug for connection to mains power. With a 10-metre high-visibility hose and cuff for 51mm poles, this vacuum not only delivers top-tier performance but also ensures safety and visibility
Specifications:
√ Heavy Duty Full Steel Tipping Trolley 68cm (W) x 57cm (D) x 98cm (H)
√ 100 Litre Drum Capacity
√ 3 x Individual Power 1200w Motors (3600w)
√ 82″ Water Lift
√ 11,166 Lpm Airflow
√ 76Db
√ 72mm cyclonic inlet
√ Weighs 50kg
√ 8m Power Cable
√ White dry use filter (to clean, blow the dust using the front lever or remove from head and use a stiff brush in-between the pleats)
√ Green wet use filter (to clean remove from head and wash filter under hose)
√ IP44
√ Supplied with 51mm diameter, 10 metre hi-vis hose and 51mm Hose Cuff
Clamped carbon anti conductive gutter vacuum pole kit with our unique 51mm carbon rigid neck and 51mm diameter nozzles
This kit is supplied at your choice of 20ft to 40ft of poles, along with our 65 degree carbon rigid neck which takes a selection of 51mm diameter gutter clearing nozzles (the dirt breaker, gulper and crevice nozzle) and includes a four pocket pole bag for ease of storage and transportation.
Overview
- Length: 1.5m. • Diameter: 51mm. • Weight: 485g per section.
- Construction: In addition to 100% carbon fibre, the pole features two layers of anti-conductive shock-resistant fabric.
Anti-Conductive Material – Green Thermosetting Braided Electroplated Prepreg
Green thermosetting braided electroplated prepreg is an anti-conductive composite material manufactured from high-quality glass fibre monofilaments. Due to its glass fibre construction, the material provides excellent electrical insulation properties, making it ideal for applications requiring non-conductive performance.
The thermosetting resin system ensures high mechanical strength, dimensional stability, and long-term durability. Its braided structure enhances structural integrity, while the electroplated finish provides an attractive appearance and additional surface protection.
Your green layer is your visual indicator. Inspect regularly for any signs of damage, the white layer exposes this underneath followed by the black layer which is conductive.
Key Features
- Safety Assured: Tested up to 10,000 volts, providing reliable protection against electrical hazards.
- Versatile Integration: Seamlessly connects with our existing 51mm push-fit and clamped carbon pole systems.
- Durable Build: Manufactured for professional use, ensuring long-term reliability in demanding environments.
- Reinforced Metal Ring: Preventing splintering, designed to withstand tough environments.Applications
- Ideal for gutter cleaning and exterior maintenance in both residential and commercial settings.
- Suitable for use by gutter clearing specialists and property maintenance teams seeking additional safety and performance.
The Anti Conductive 51mm clamped carbon fibre pole kit features:
√ Time Saving Quick Interlock
√ Forced Stop – eliminating the risk of over pushing poles
√ Reinforced Ring
√ Quick Release Mechanism
√ Customised Height Reach
√ Carbon Fibre Rigid Neck (this takes our 51mm diameter nozzles)
√ Quick Release Clamp – for securing your 51mm nozzle in place
√ Everyday Dirt breaker (51mm) – for general use and agitation
√ GVS Gulper (51mm) – our game changing nozzle – designed to allow for air circulation and to clear debris without sticking to the gutters
√ Crevice (51mm) – access those narrow gutters that are restricted by overhanging tiles
IT IS IMPORTANT TO REMEMBER THAT DAMAGE TO THE WEAR INDICATOR OF THE POLE HIGHLIGHTS COMPROMISE TO THE STRUCTURAL INTEGRITY AND INSULATION OF THE POLE.
Any damage to the pole caused by misuse general wear and tear is at the operatives risk. Equipment should be regularly inspected prior to to use and after all other risk assessment methods have been undertaken.
At the time of testing; 12th June 2025 to 17th June 2025, the pole was tested in accordance with ASTM F2412-24 modified, clause 9 electric hazard resistance (EH) at 10,000 volts.
