Technical specifications
- Specification
- Dual, tri and quad jet options
- Specification
- 1/4″ NPT female thread
- Specification
- 275 Bar rated pressure
- Specification
- 30 LPM maximum flow
- Specification
- 90°C rated temperature
- Specification
- Compatible with 11.6mm mini quick releases
Full product description

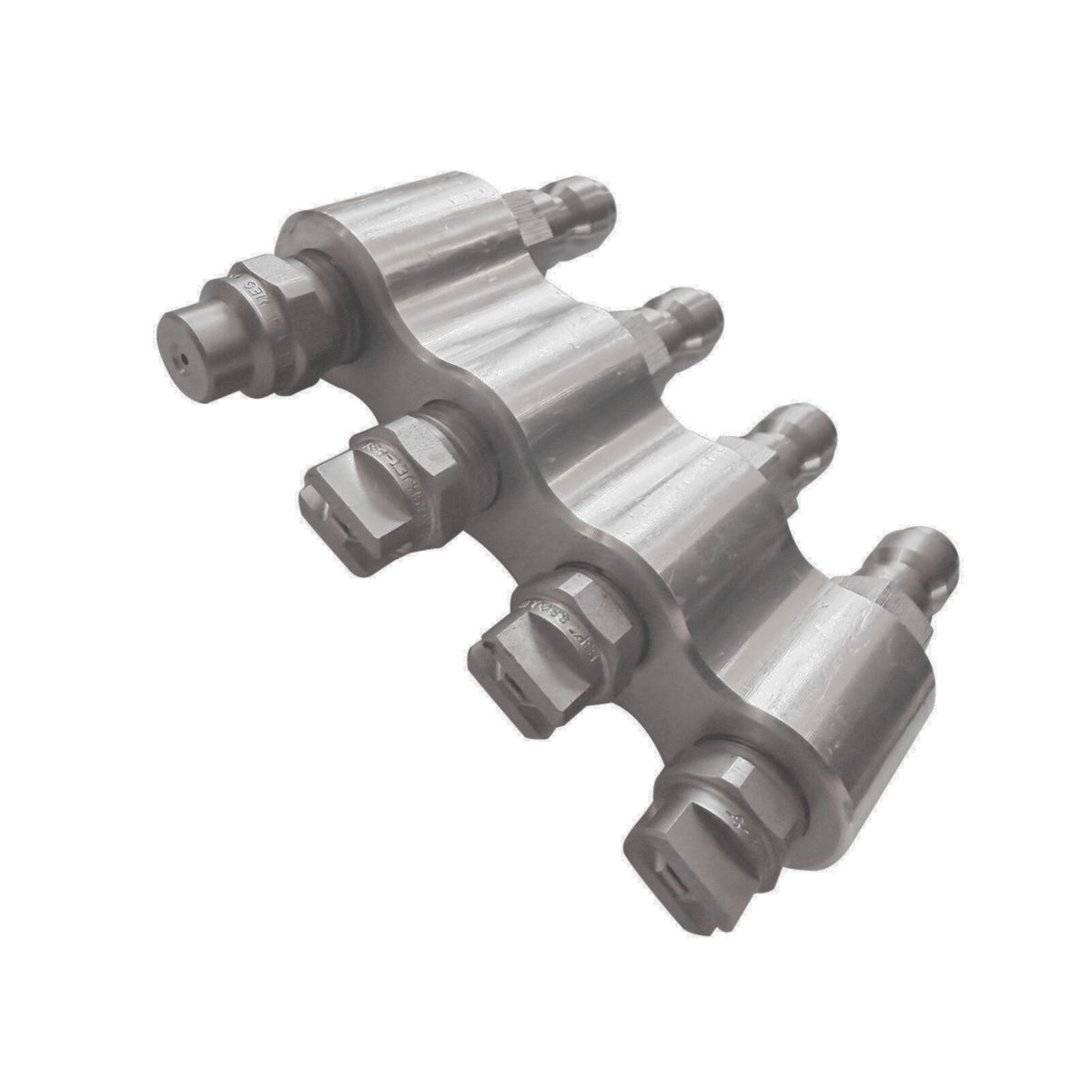

J Rod Nozzle Holder
Switch between nozzles instantly. The J Rod Nozzle Holder lets you change between up to four spray patterns in seconds, keeping your workflow fast and efficient. When paired with our GVS Quick Release Lance, it becomes the ultimate system for professionals who demand top-tier performance, precision, and reliability on every job.
Features:
-
Quick-Change Design: Effortlessly switch between four nozzles for different spray patterns and applications.
-
Durable Construction: Built from stainless steel and aluminium for superior strength and corrosion resistance.
-
High Performance: Engineered for long-lasting performance, even under demanding conditions.
Specifications:
-
Thread Size: ¼” NPT Female
-
Rated Pressure: 275 Bar
-
Maximum Flow: 30 Lpm
-
Rated Temperature: 90°C
-
Body Material: Aluminium
-
Nozzles: Stainless Steel
Please Note : Compatible with 11.6mm Mini Quick Releases.
J Rod Nozzle Holder Options:
| J Rod Size | QuadJet 4 Nozzle Holder | TriJet 3 Nozzle Holder | DualJet 2 Nozzle Holder |
| Temperature Rating | 90°C | 90°C | 90°C |
| Max Flow | 30 Lpm | 30 Lpm | 30 Lpm |
| Thread Type | ¼” NPT Female thread | ¼” NPT Female thread | ¼” NPT Female thread |
| Nozzles | 0°, 15° , 25°, 40° | 0°, 25° , 40° | 0°, 40° |
| Max Pressure | 275 Bar | 275 Bar | 275 Bar |
