Technical specifications
- Motor power
- 3,600W
- Airflow
- 10,000 LPM
- Drum capacity
- 80L
- Weight
- 25kg
- Voltage
- mains powered
- Setup
- anti-conductive, carbon fibre poles, clamped connection, rigid neck
Full product description
GVS 3600 Clamped Carbon Fibre - Carbon Rigid Neck (51mm) - Gutter Vacuum System
The GVS-36 has a powerful 10,000Lpm suction performance developed from our years of hands on experience. No plastic inlets and blockage causing reductions in diameter. This makes the GVS-36 a great cost effective system. The GVS-36 sits on a choice of full steel, tilting tipping trolley for easy emptying. Simply remove the head and position safely on the ground then tilt the drum and empty the contents. The trolley has two front locking casters and positional unlocking dismounting clips. The float valve is provided with a large cloth filter and retaining basket.
The original one handled frame is a convenient size of 58cm(W) x 58cm(W) x 99cm(H), this vacuum hardly takes up any room in your van, it features rear plastic wheels and a low point tipping bar.

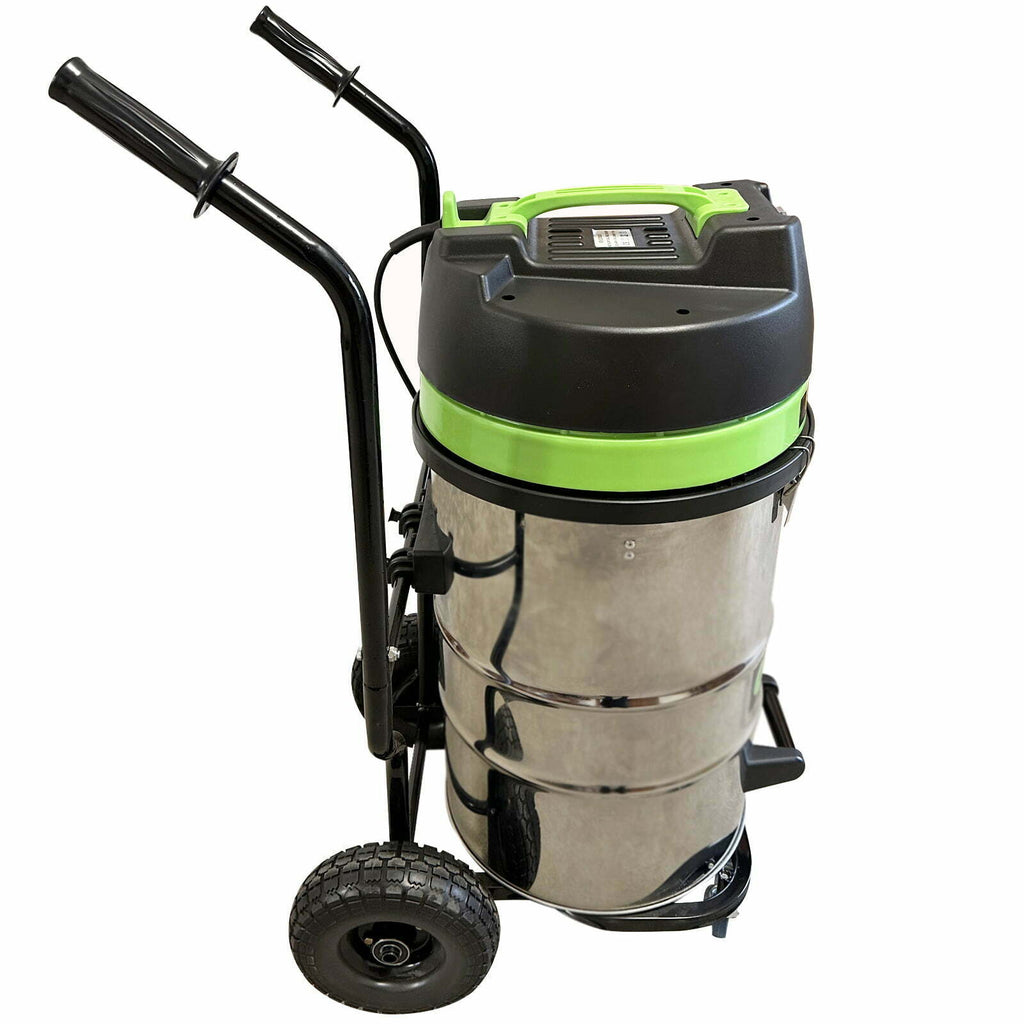

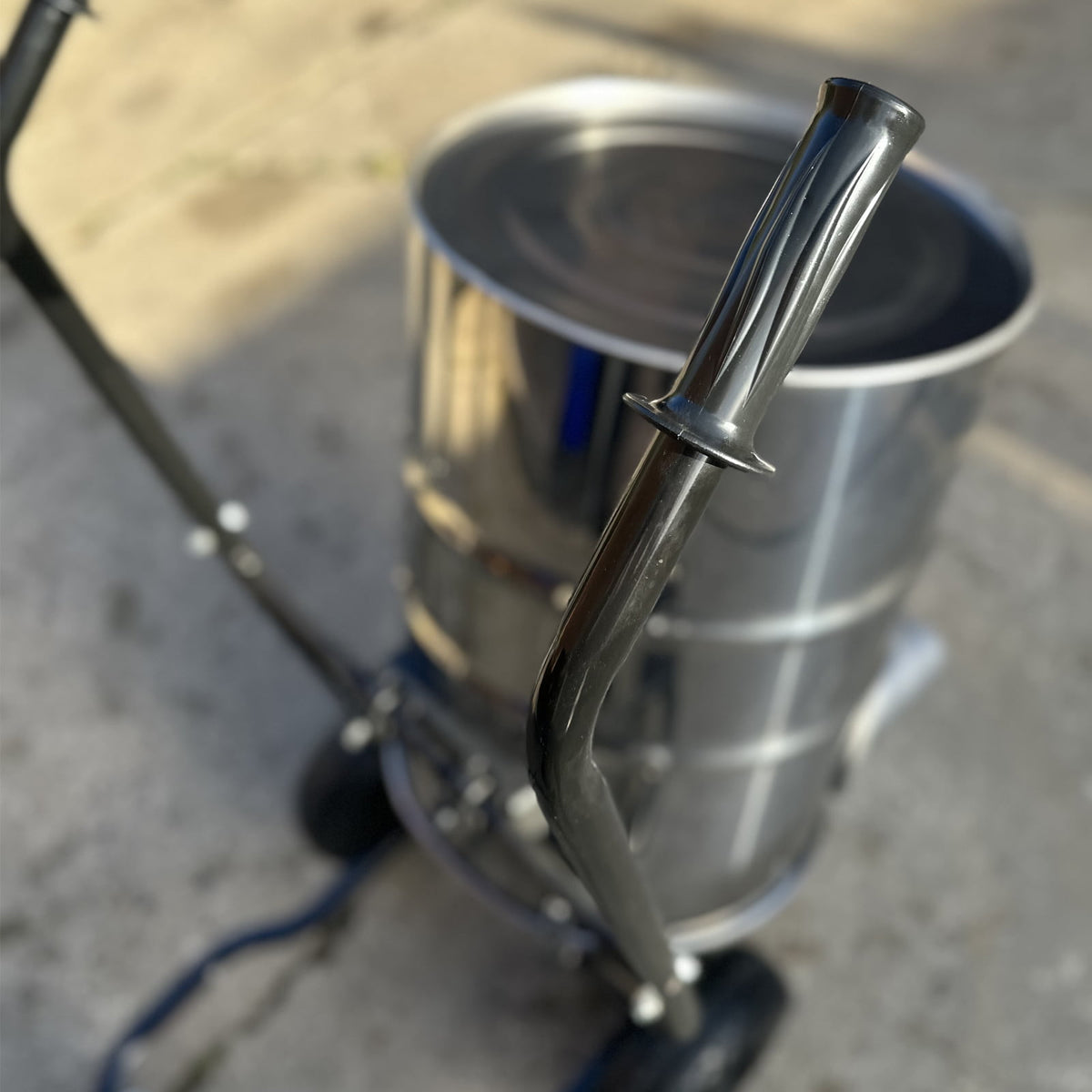

The two handled all terrain trolley boasts large rear puncture proof wheels and a mid point tipping bar for easy emptying. This is a larger frame at 53cm(W) x 66cm(D) x 112cm(H).

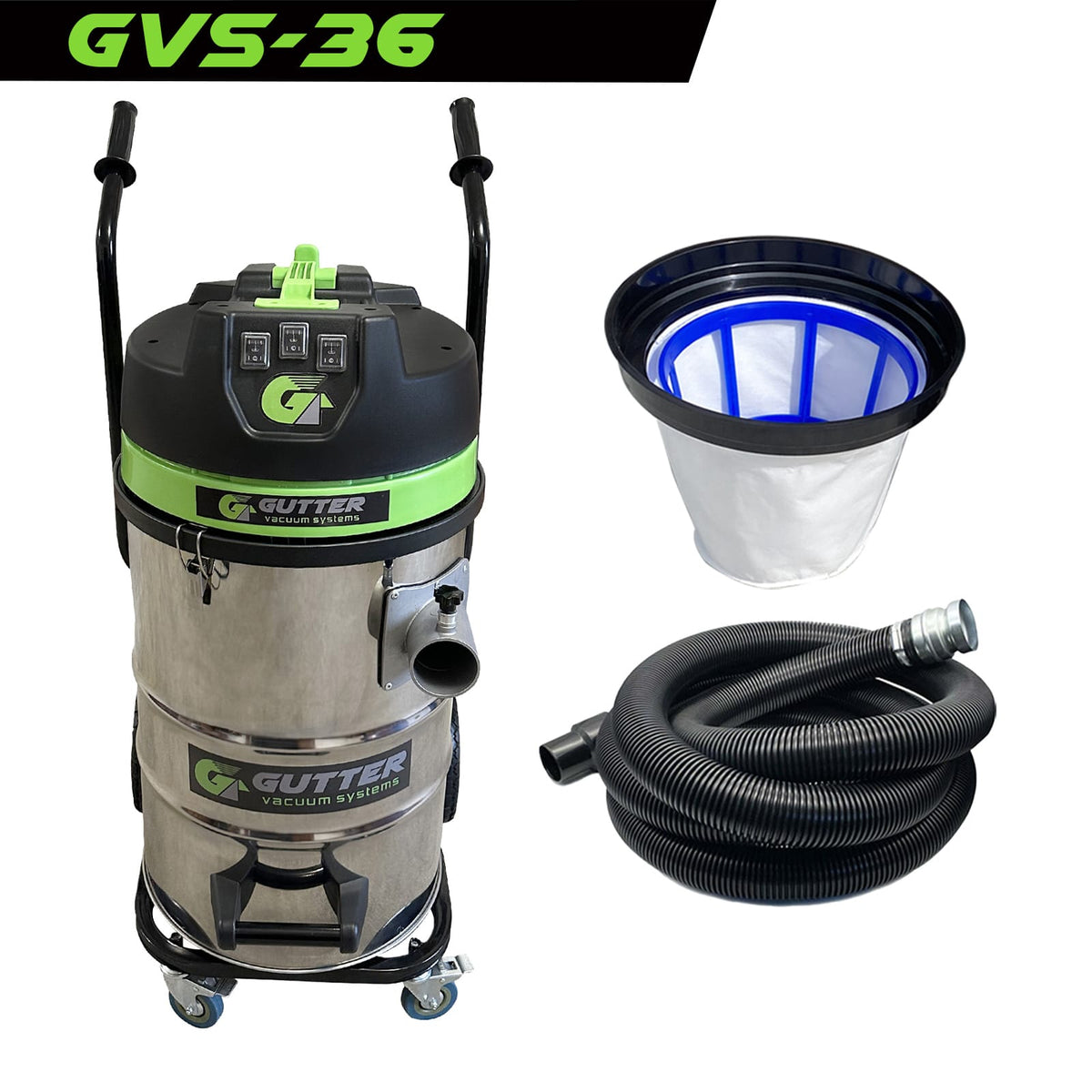

The GVS-36 is supplied with 51mm diameter, 5m length of universal hose and a 51mm hose cuff, though additional lengths of hose can be conveniently added later using a hose joiner and additional hose cuff for those bigger jobs.
This 3600w triple motor gutter vacuum can run efficiently direct from mains power and we do recommend where no electricity can be accessed, a generator with a minimum of 5.5kva.
Maintaining your gutter vacuum is very easy and regular cleans will always keep your tools in tip top condition.
Inside this gutter vacuum is a removable, washable cloth filter with a retaining basket. We recommend on dry dusty gutters to keep this cloth filter in to protect your motor head from fine dusty particles. When the gutters are wet, full of slurry, sludge, sloppy leaves or wet vegetation, we advise hosing the filter off on site for retaining suction performance as the wet sludgy matter will clog up the filter material reducing your suction performance. If you do remove the cloth filter you must ensure the float valve is free of muck at all times. The filter is there to protect the float valve on wet application thus protecting your motors.
The cloth filter MUST be fully dry for dry use.
Cleaning this cloth filter is very simple, you can wash with a low pressure jet wash or use a stiff brush when dry. Always make sure it has been air dried prior to reusing.
Specifications:
√ Heavy Duty Full Steel Trolley (Please select your choice from the drop down option)
√ 80 Litre Drum Capacity
√ 3 x Individual Power 1200w Motors (3600w)
√ 100" Water Lift
√ 10,000 Lpm Airflow
√ 76Db
√ 72mm cyclonic inlet
√ Original frame 58cm(W) x 58cm(W) x 99cm(H)
√ Two handle frame 53cm(W) x 66cm(D) x 112cm(H).
√ Weighs 25kg
√ 8m Power Cable
√ Washable Cloth Filter
√ IP44
√ Supplied With 51mm Diameter, 5 Meter Vacuum Hose and 51mm Hose Cuff
See the GVS 3600 in action here on our YouTube video featuring professional exterior cleaning specialists achieving great success with this machine! The video has been compiled from tags received by our customers on our Instagram Page.
Clamped carbon anti conductive gutter vacuum pole kit with our unique 51mm carbon rigid neck and 51mm diameter nozzles

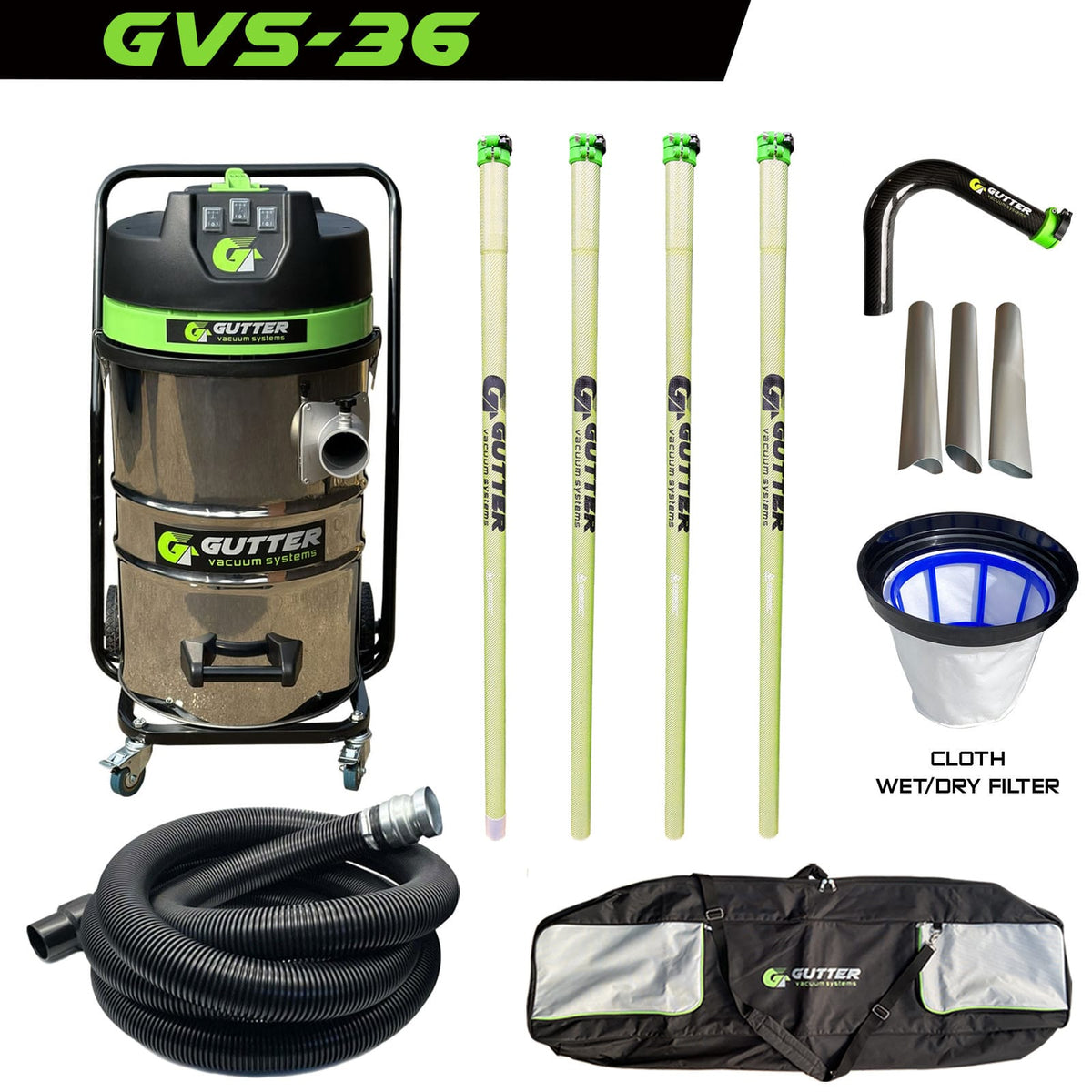

This kit is supplied at your choice of 20ft to 40ft of poles, along with our 65 degree carbon rigid neck which takes a selection of 51mm diameter gutter clearing nozzles (the dirt breaker, gulper and crevice nozzle) and includes a four pocket pole bag for ease of storage and transportation.
Overview

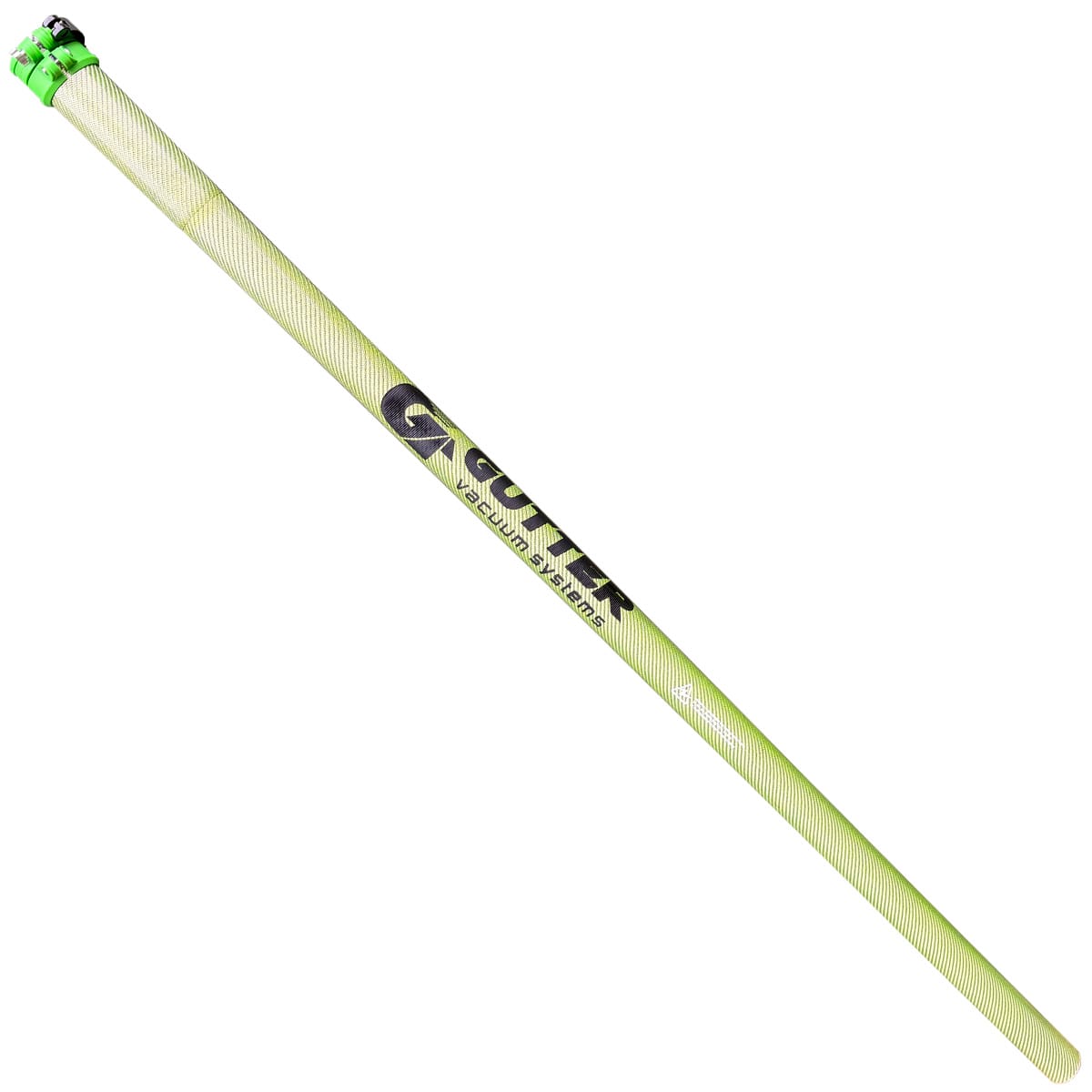

- Length: 1.5m. • Diameter: 51mm. • Weight: 485g per section.
- Construction: In addition to 100% carbon fibre, the pole features two layers of anti-conductive shock-resistant fabric.
Anti-Conductive Material – Green Thermosetting Braided Electroplated Prepreg
Green thermosetting braided electroplated prepreg is an anti-conductive composite material manufactured from high-quality glass fibre monofilaments. Due to its glass fibre construction, the material provides excellent electrical insulation properties, making it ideal for applications requiring non-conductive performance.
The thermosetting resin system ensures high mechanical strength, dimensional stability, and long-term durability. Its braided structure enhances structural integrity, while the electroplated finish provides an attractive appearance and additional surface protection.
Your green layer is your visual indicator. Inspect regularly for any signs of damage, the white layer exposes this underneath followed by the black layer which is conductive.
Key Features
- Safety Assured: Tested up to 10,000 volts, providing reliable protection against electrical hazards.
- Versatile Integration: Seamlessly connects with our existing 51mm push-fit and clamped carbon pole systems.
- Durable Build: Manufactured for professional use, ensuring long-term reliability in demanding environments.
- Reinforced Metal Ring: Preventing splintering, designed to withstand tough environments.Applications
- Ideal for gutter cleaning and exterior maintenance in both residential and commercial settings.
- Suitable for use by gutter clearing specialists and property maintenance teams seeking additional safety and performance.
The Anti Conductive 51mm clamped carbon fibre pole kit features:
√ Time Saving Quick Interlock
√ Forced Stop – eliminating the risk of over pushing poles
√ Reinforced Ring
√ Quick Release Mechanism
√ Customised Height Reach
√ Carbon Fibre Rigid Neck (this takes our 51mm diameter nozzles)
√ Quick Release Clamp – for securing your 51mm nozzle in place
√ Everyday Dirt breaker (51mm) – for general use and agitation
√ GVS Gulper (51mm) – our game changing nozzle – designed to allow for air circulation and to clear debris without sticking to the gutters
√ Crevice (51mm) – access those narrow gutters that are restricted by overhanging tiles
IT IS IMPORTANT TO REMEMBER THAT DAMAGE TO THE WEAR INDICATOR OF THE POLE HIGHLIGHTS COMPROMISE TO THE STRUCTURAL INTEGRITY AND INSULATION OF THE POLE.
Any damage to the pole caused by misuse general wear and tear is at the operatives risk. Equipment should be regularly inspected prior to to use and after all other risk assessment methods have been undertaken.
At the time of testing; 12th June 2025 to 17th June 2025, the pole was tested in accordance with ASTM F2412-24 modified, clause 9 electric hazard resistance (EH) at 10,000 volts.
Price includes VAT and delivery to mainland UK. Should you require delivery to Ireland or beyond, please email info@guttervacuumsystems.co.uk for a quotation.
Whether you are upgrading your equipment, adding an extra service and revenue stream to your business or you are looking for a fantastic package that offers you the set up you need, the GVS 3600 gives you that reassurance that not only you are no longer putting yourself or possibly others at risk with ladders, but you are going to generate a noticeable increase to your business whilst vacuuming gutters.
If you would love to see the GVS-36 in action, check out our YouTube video.
