Technical specifications
- Motor power
- 3,600W
- Airflow
- 10,000 LPM
- Drum capacity
- 80L
- Weight
- 25kg
- Voltage
- mains powered
- Setup
- aerospace aluminium poles
Full product description
GVS 3600 Gutter Vacuum System with the Lightest Aerospace Aluminium Pole Kit

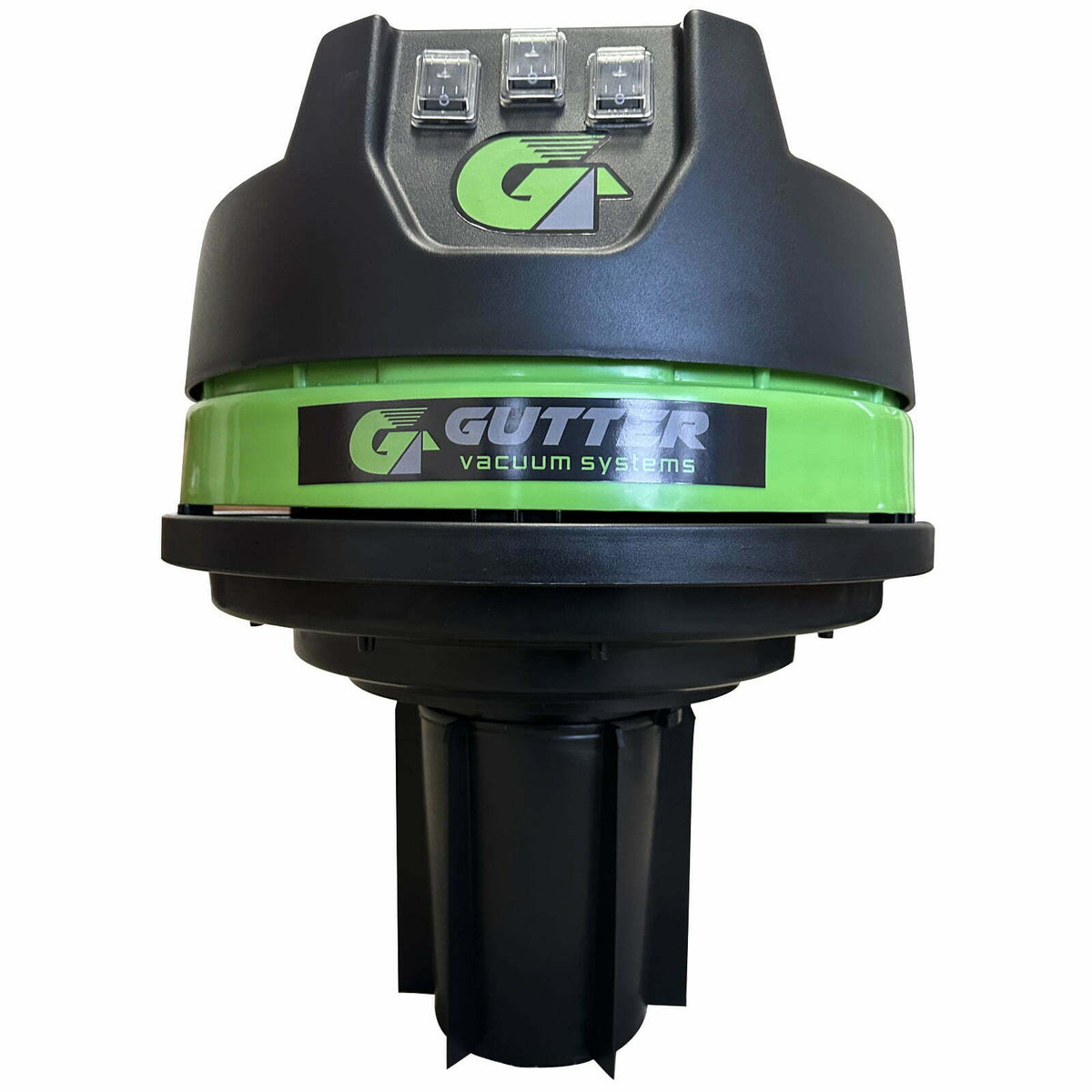

The GVS-36 has a powerful 10,000 Lpm suction performance developed from our years of hands on experience. No plastic inlets and blockage causing reductions in diameter. This makes the GVS-36 a great cost effective system. The GVS-36 sits on a choice of full steel, tilting tipping trolley for easy emptying. Simply remove the head and position safely on the ground then tilt the drum and empty the contents. The trolley has two front locking casters and positional unlocking dismounting clips. The float valve is provided with a large cloth filter and retaining basket.

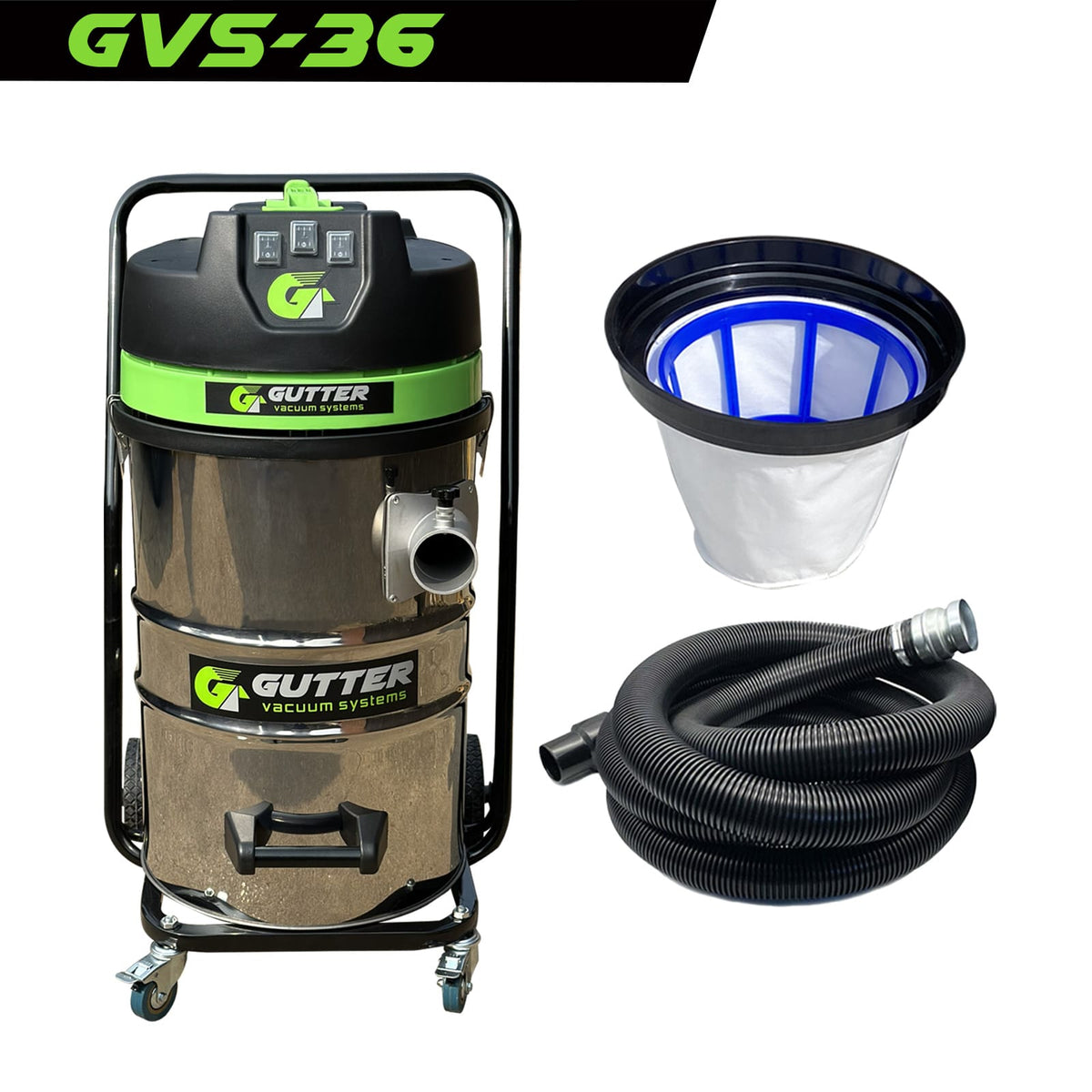

The original one handled frame is a convenient size of 58cm(W) x 58cm(W) x 99cm(H), this vacuum hardly takes up any room in your van, it features rear plastic wheels and a low point tipping bar.

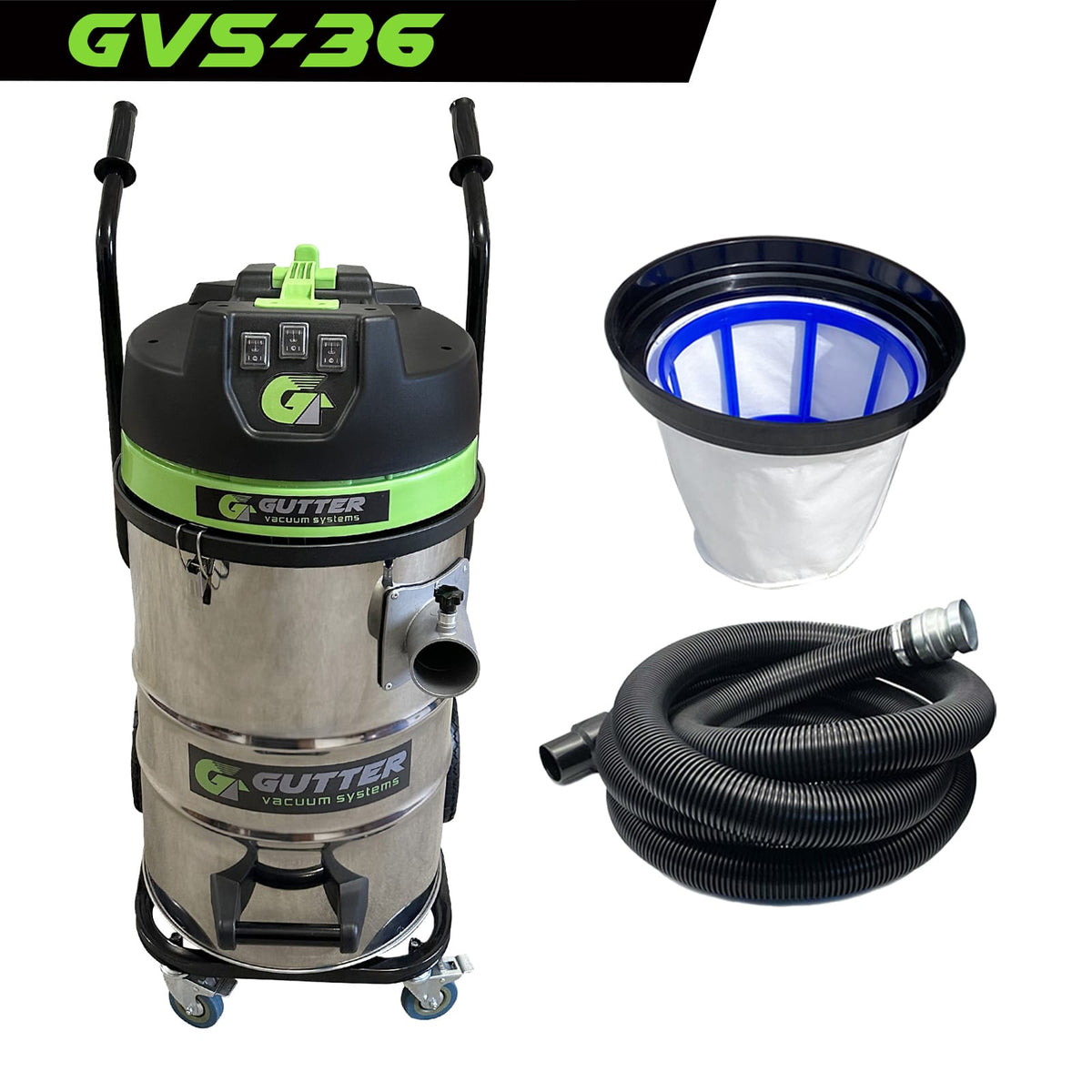

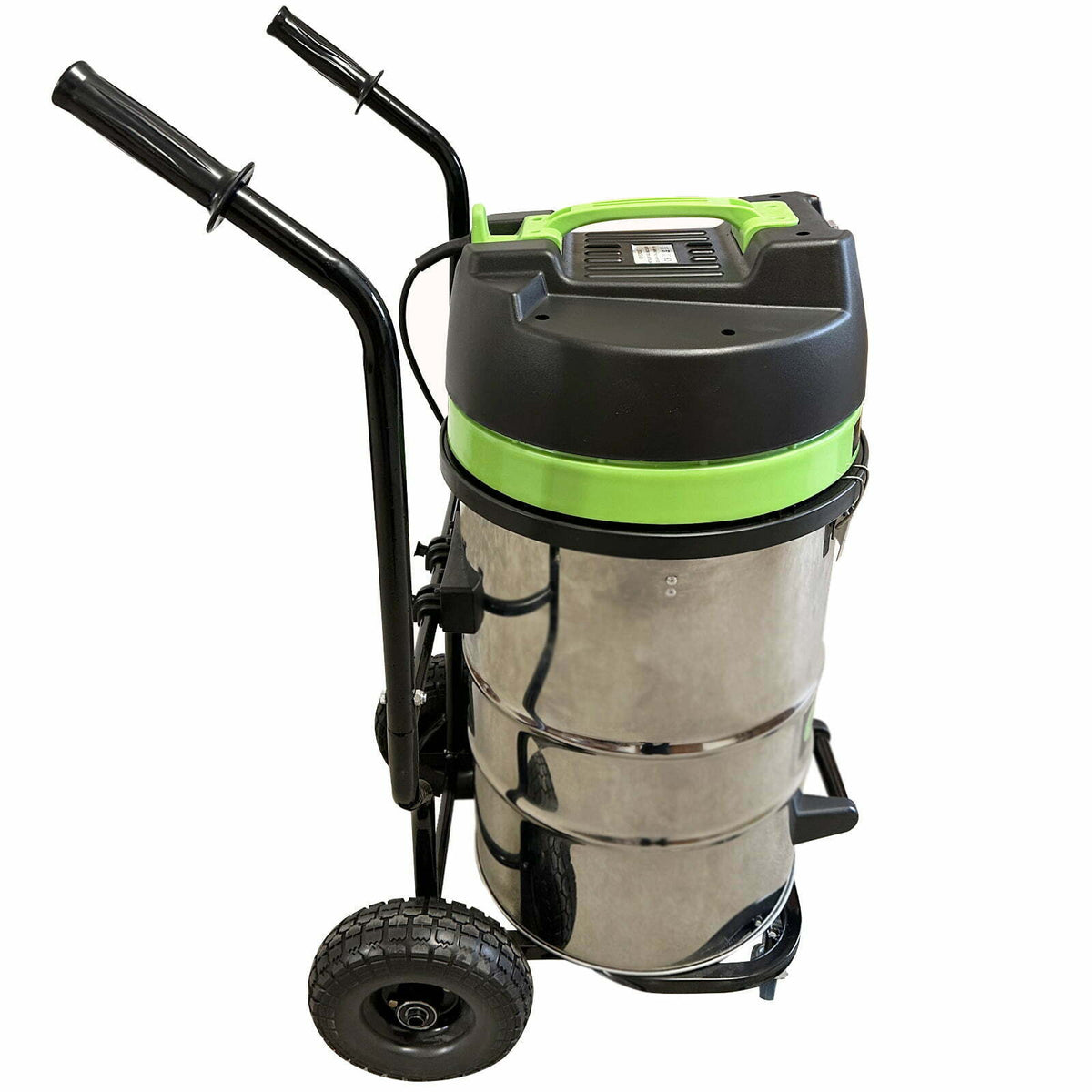

The two handled all terrain trolley boasts large rear puncture proof wheels and a mid point tipping bar for easy emptying. This is a larger frame at 53cm(W) x 66cm(D) x 112cm(H).

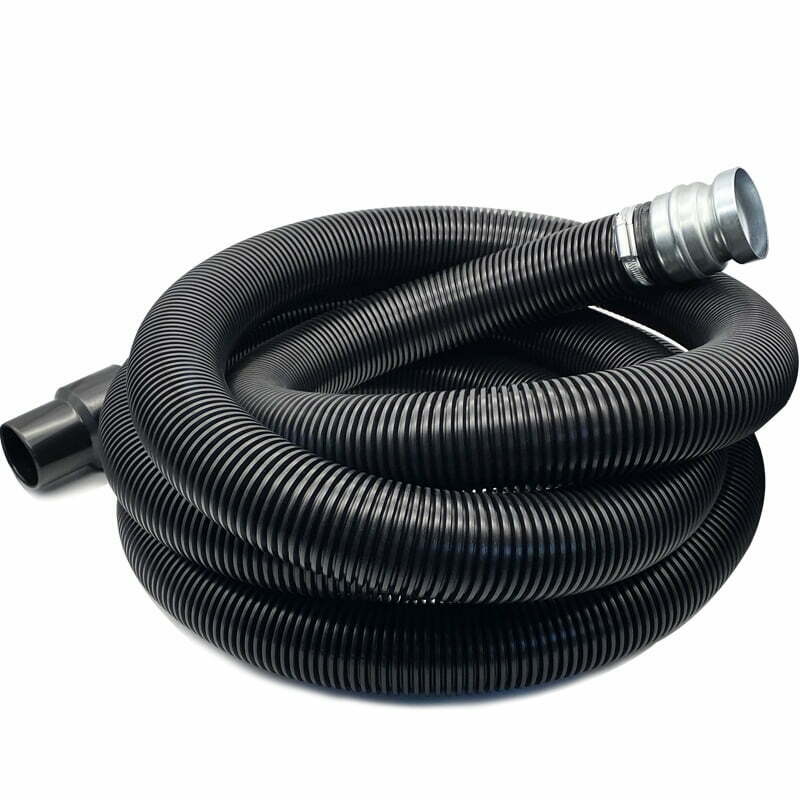

The GVS-36 is supplied with 51mm diameter, 5m length of universal hose and a 51mm hose cuff, though additional lengths of hose can be conveniently added later using a hose joiner and additional hose cuff for those bigger jobs.

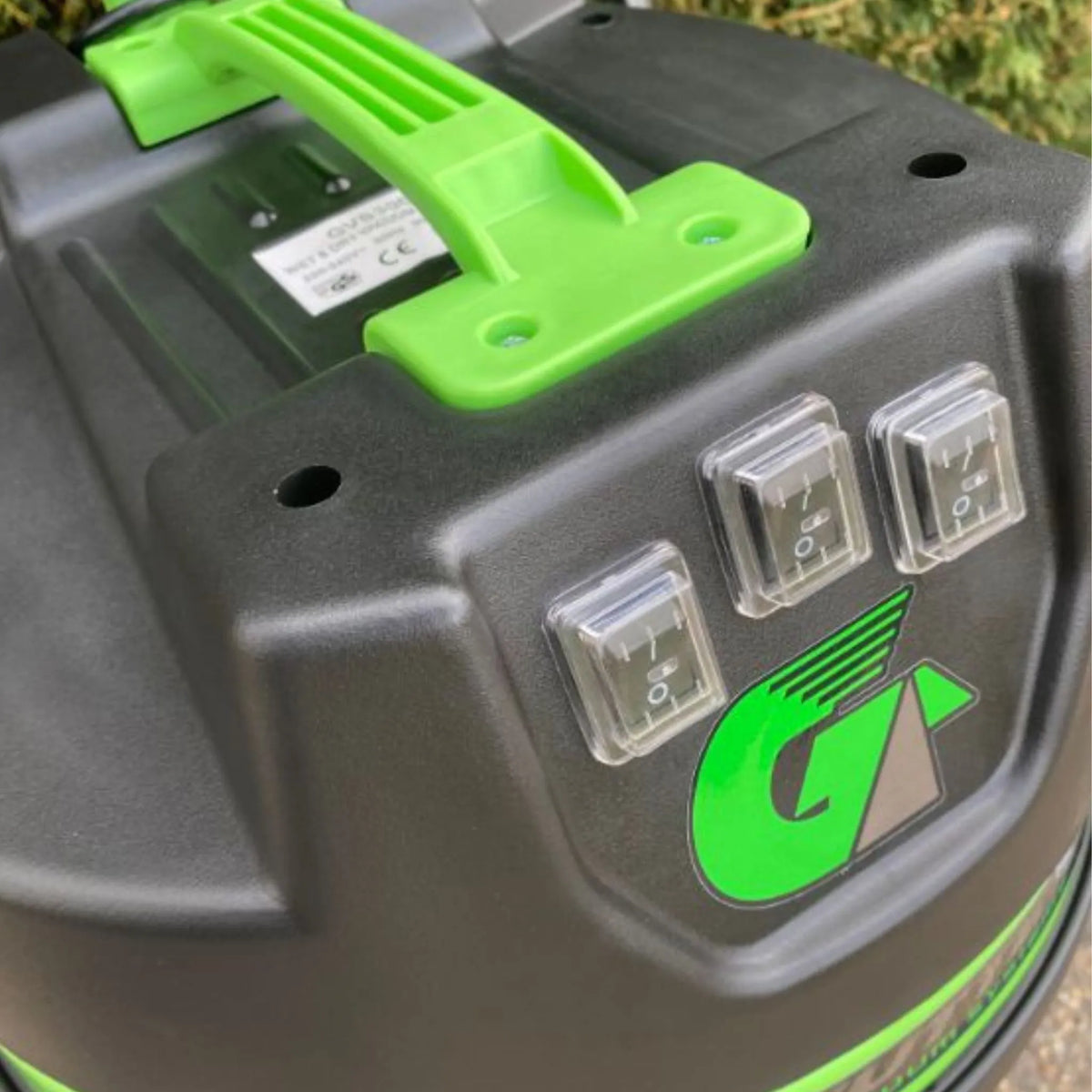

This 3600w triple motor gutter vacuum can run efficiently direct from mains power and we do recommend where no electricity can be accessed, a generator with a minimum of 5.5kva.
Maintaining your gutter vacuum is very easy and regular cleans will always keep your tools in tip top condition.

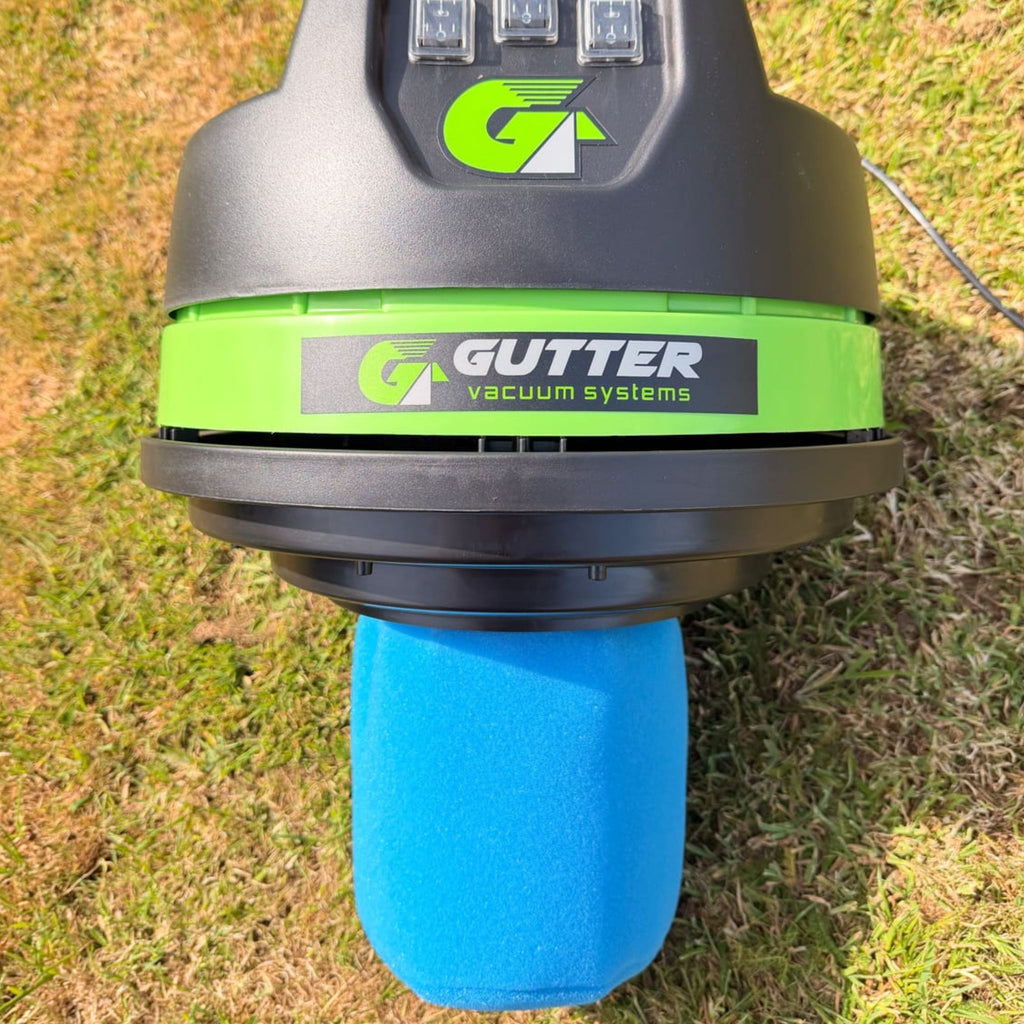

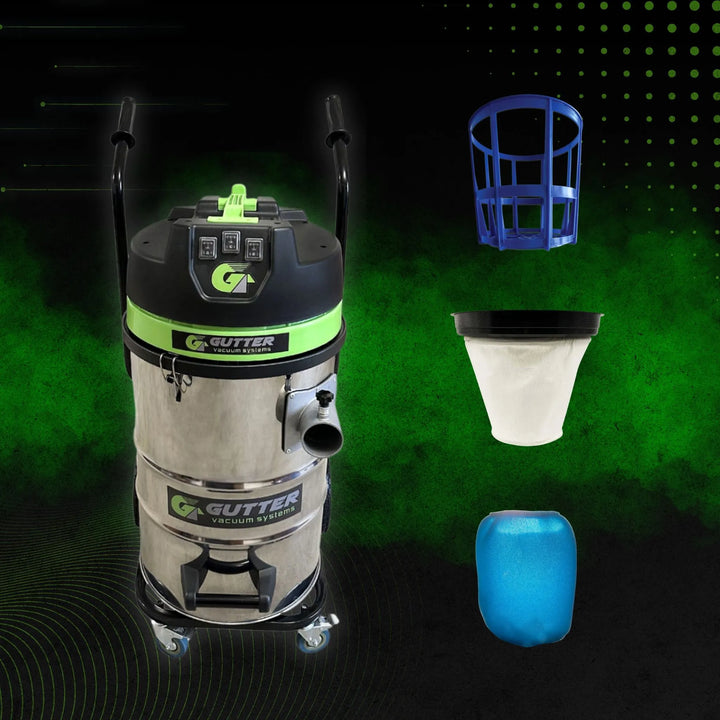

Inside this gutter vacuum is a removable, washable cloth filter with a retaining basket. We recommend on dry dusty gutters to keep this cloth filter in to protect your motor head from fine dusty particles. When the gutters are wet, full of slurry, sludge, sloppy leaves or wet vegetation, we advise hosing the filter off on site for retaining suction performance as the wet sludgy matter will clog up the filter material reducing your suction performance. If you do remove the cloth filter you must ensure the float valve is free of muck at all times. The filter is there to protect the float valve on wet application thus protecting your motors.
The cloth filter MUST be fully dry for dry use.
Cleaning this cloth filter is very simple, you can wash with a low pressure jet wash or use a stiff brush when dry. Always make sure it has been air dried prior to reusing.
Specifications:
√ Heavy Duty Full Steel Trolley (Please select your choice from the drop down option)
√ 80 Litre Drum Capacity
√ 3 x Individual Power 1200w Motors (3600w)
√ 100" Water Lift
√ 10,000 Lpm Airflow
√ 76Db
√ 72mm cyclonic inlet
√ Original frame 58cm(W) x 58cm(W) x 99cm(H)
√ Two handle frame 53cm(W) x 66cm(D) x 112cm(H)
√ Weighs 25kg
√ 8m Power Cable
√ Washable Cloth Filter
√ IP44
√ Supplied With 51mm Diameter, 5 Meter Vacuum Hose and 51mm Hose Cuff
See the GVS 3600 in action here on our YouTube video featuring professional exterior cleaning specialists achieving great success with this machine! The video has been compiled from tags received by our customers on our Instagram page.
1.2m Tapered poles each in weighing only 500g per section
4 (20ft / 6m standard residential with no conservatory reach)
6 (28ft / 8.4m standard residential with conservatory reach and town houses)
7 (32ft / 9.6m standard residentials, town houses, some three storey)
8 (36ft / 10.8m standard residentials, town houses, three storey)
9 (40ft / 12m standard residentials, town houses, three storey, four storey)
1 x 1.2m Base completely straight pole for your hose cuff to attach to

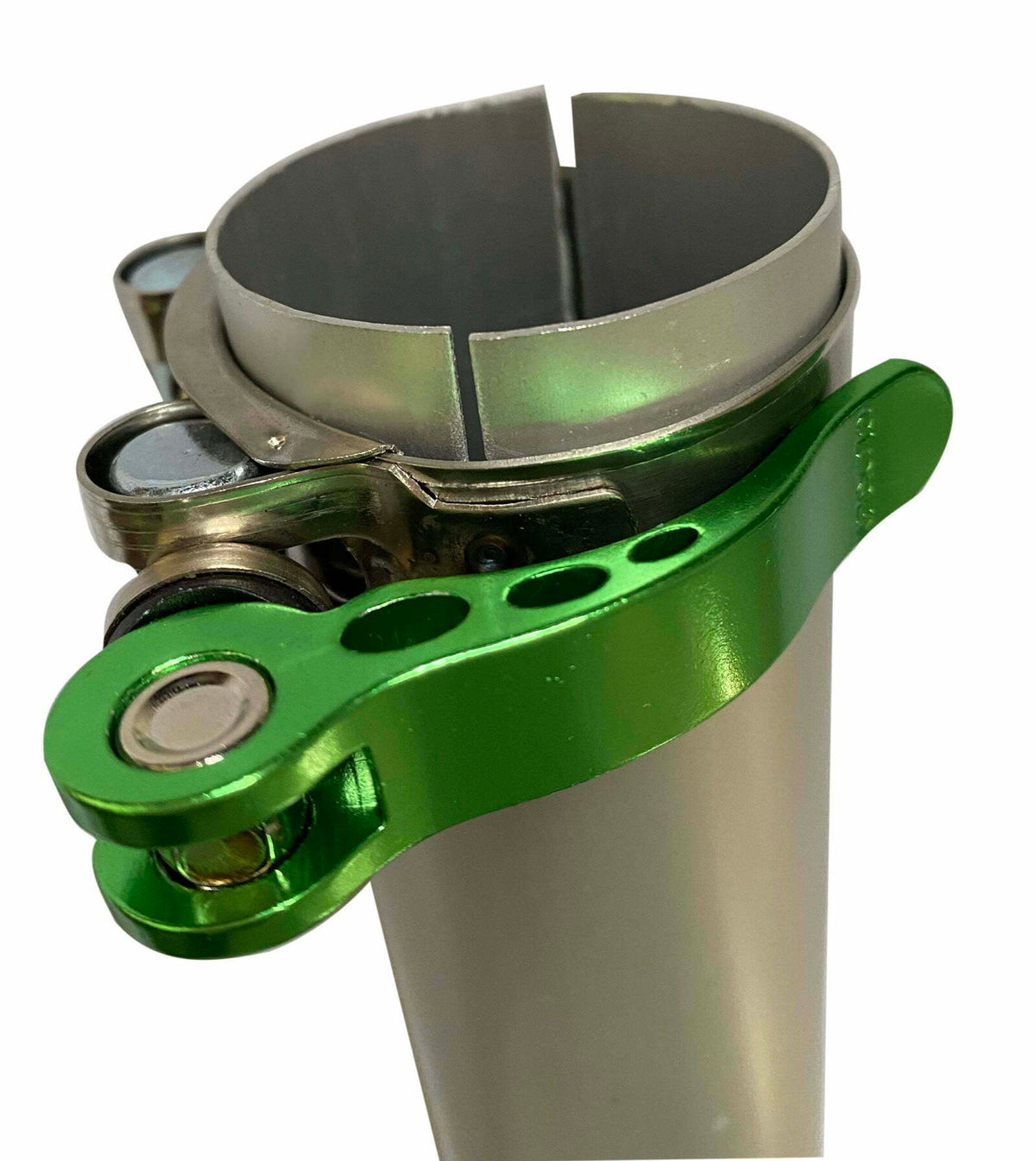

Quick release clamps (For the number of poles you select you will receive one less clamp than poles in your kit)

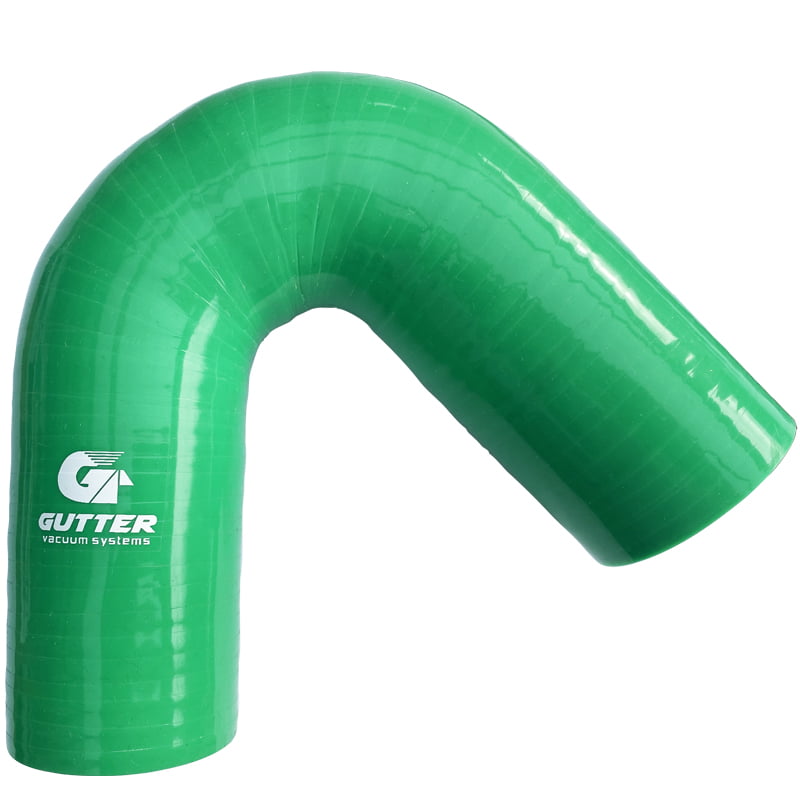

1 x Silicon 135 degree swan neck

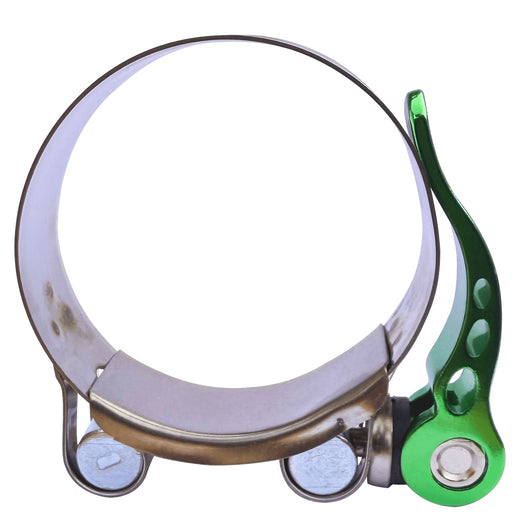

1 x Silicon quick release securing nozzle clamp
1 x 35 degree Dirtbreaker nozzle
1 x Crevice nozzle
1 x Unique GVS Gulper nozzle
1 x Hose cuff
Instructions on pole assembly and maintenance
The Gutter Vacuum Systems’ aluminium poles are the LIGHTEST 1.2m aerospace aluminium gutter cleaning pole in the industry. We have had these especially produced for you to keep the poles light and robust, meaning you can be tougher on stubborn gutters with more rigidity than the carbon fibre. You can achieve the reach you need easily with additional poles and secure quick release clamps.
Whether you are upgrading your equipment, adding an extra service and revenue stream to your business or you are looking for a fantastic package that offers you the set up you need, the GVS 3600 gives you that reassurance that not only you are no longer putting yourself or possibly others at risk with ladders.
Benefits:
These wet and dry vacuums suck liquids and solids from gutters with ease.
The larger inlet on our systems allows for the advantage of the 51mm diameter to run from the nozzle, poles and through the hose and into your vacuum. This preferred feature reduces the chances of blockages repeatedly found from smaller systems which struggle with larger objects such as moss, some broken pointing, roof tiles, and other vegetation. No bag is required, the debris enters drum at speed, circumnavigating inside and falling to the bottom evenly distributed.
The vacuum is supplied with a minimum of 5m hose. Only one operative is required to set up, use and dismantle. It's a quick and easy set up which adds the extra service and revenue stream to your business. There is no mess as the contents are within your drum. This system means you are no longer putting yourself or your staff at risk going up and down ladders and you can work safely from the ground.
Who buys our equipment?
In fact, our gutter vacuum cleaning systems and accessories are a fantastic addition to many business types. So whether you are starting out in the gutter cleaning industry or looking to expand your range of cleaning services thus increasing your revenue this entry level industrial suits many businesses.
Price includes VAT and delivery to mainland UK. Should you require delivery to Ireland or beyond, please email info@guttervacuumsystems.co.uk for a quotation.
Have you thought about generators and extension leads?
If you would love to see the GVS-36 in action, check out our YouTube video.
