Technical specifications
- POLE LENGTH
- 20ft extended
- CONSTRUCTION
- 100% carbon fibre; 4 sections
- POLE WEIGHT
- approx. 1.2kg
- COLLAPSED LENGTH
- approx. 172cm
- STANDARD HOSE
- 25ft; 190 bar / 2750 PSI
- GREEN LIGHTWEIGHT HOSE
- 40ft (12m); 200 bar / 2900 PSI
- KIT INCLUDES
- selected hose, 22mm adaptor, angled nozzle holder and ST601 inline trigger
- INLET CONNECTIONS
- M22 male, TEMA QR, 3/8″ BSP and MIDI QR
Full product description

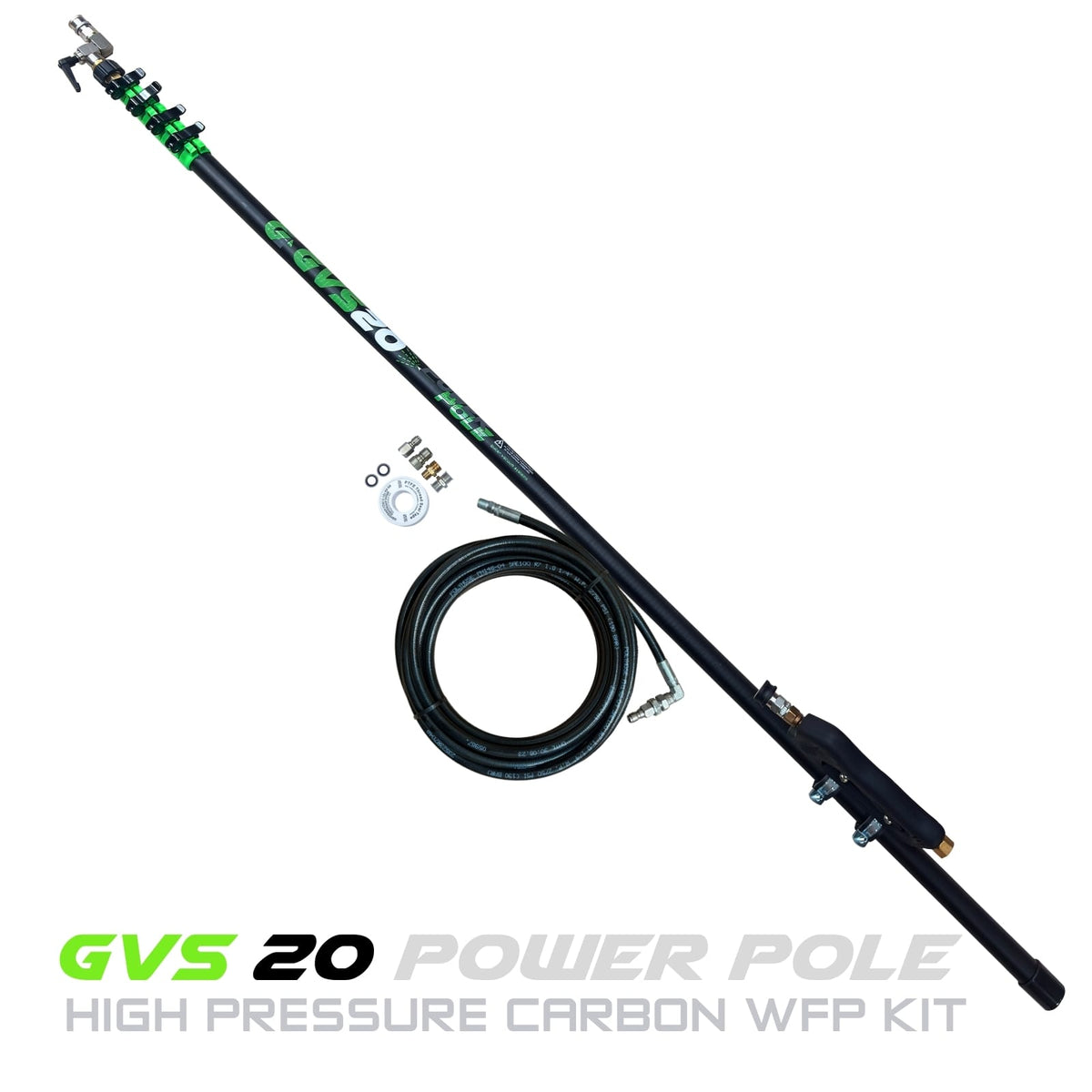

GVS 20 Pressure Pole - High-Pressure Carbon WFP Kit (20ft Extended)
The GVS 20 Pressure Pole kit combines a 20ft full carbon-fibre pole with the fittings and controls needed for a compatible high-pressure washing setup at height. Its compact length makes it a practical option for roofline and exterior cleaning where a longer pole is not required. Select the high-pressure hose type to suit your equipment and working requirements.
Choose Your High-Pressure Hose
Each kit includes one high-pressure hose, supplied according to your selected hose option:

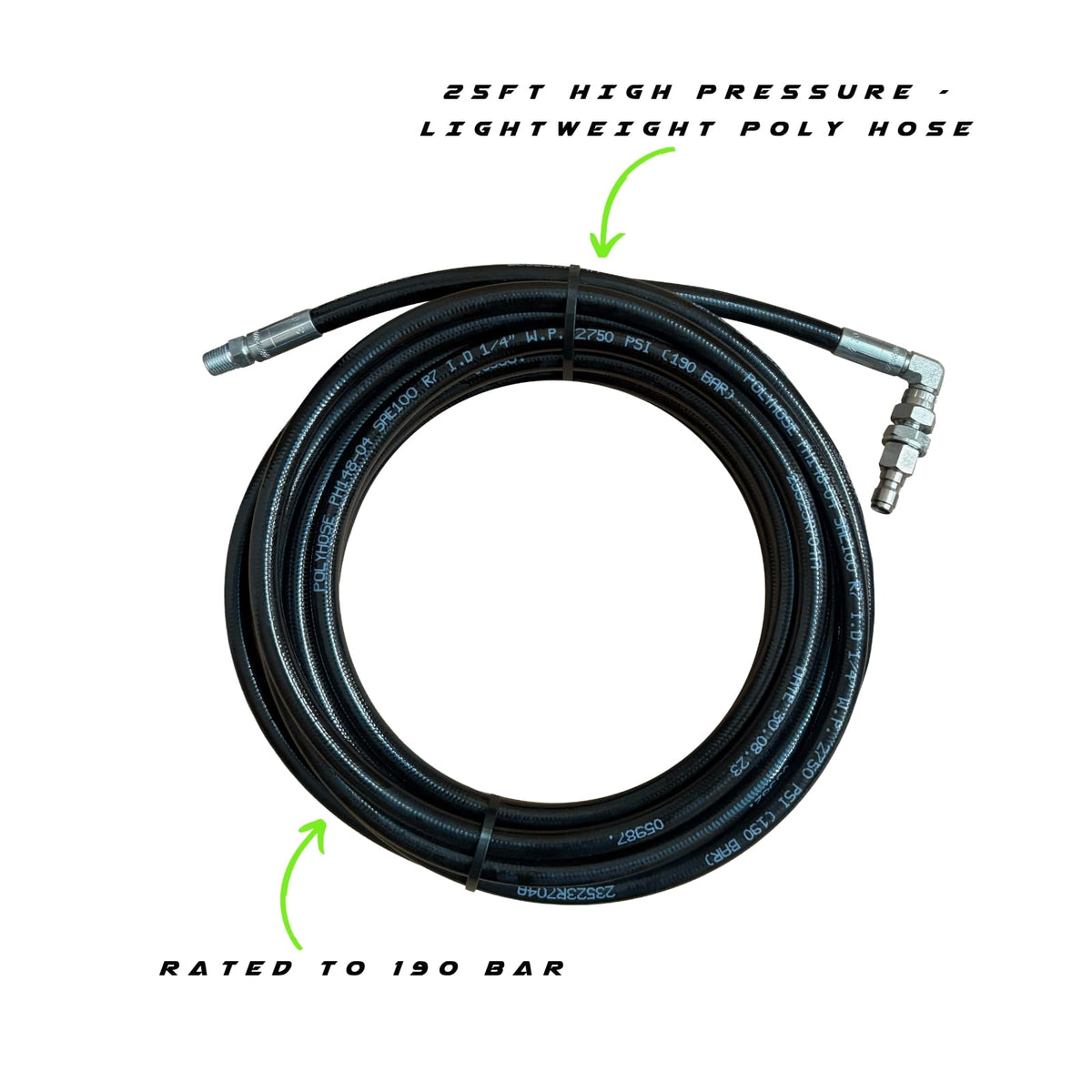

- Standard High-Pressure Poly Hose - 25ft: Rated to 190 bar / 2750 PSI. Approximate weight 1.09kg including fittings.
- Green Lightweight High-Pressure Hose - 40ft (12m): Rated to 200 bar / 2900 PSI, with an operating temperature range of -40°C to +60°C. Approximate hose weight 1.25kg excluding fittings.

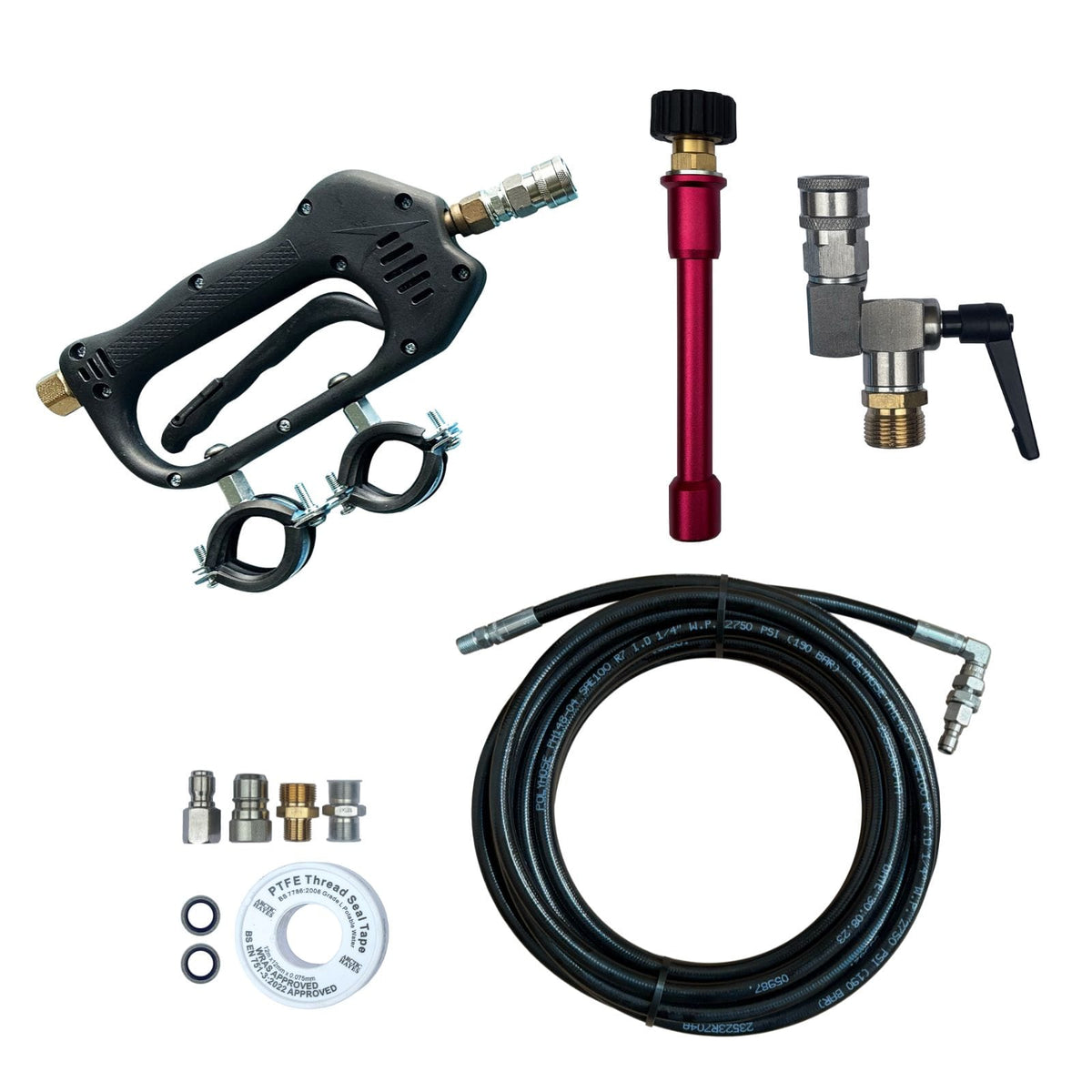

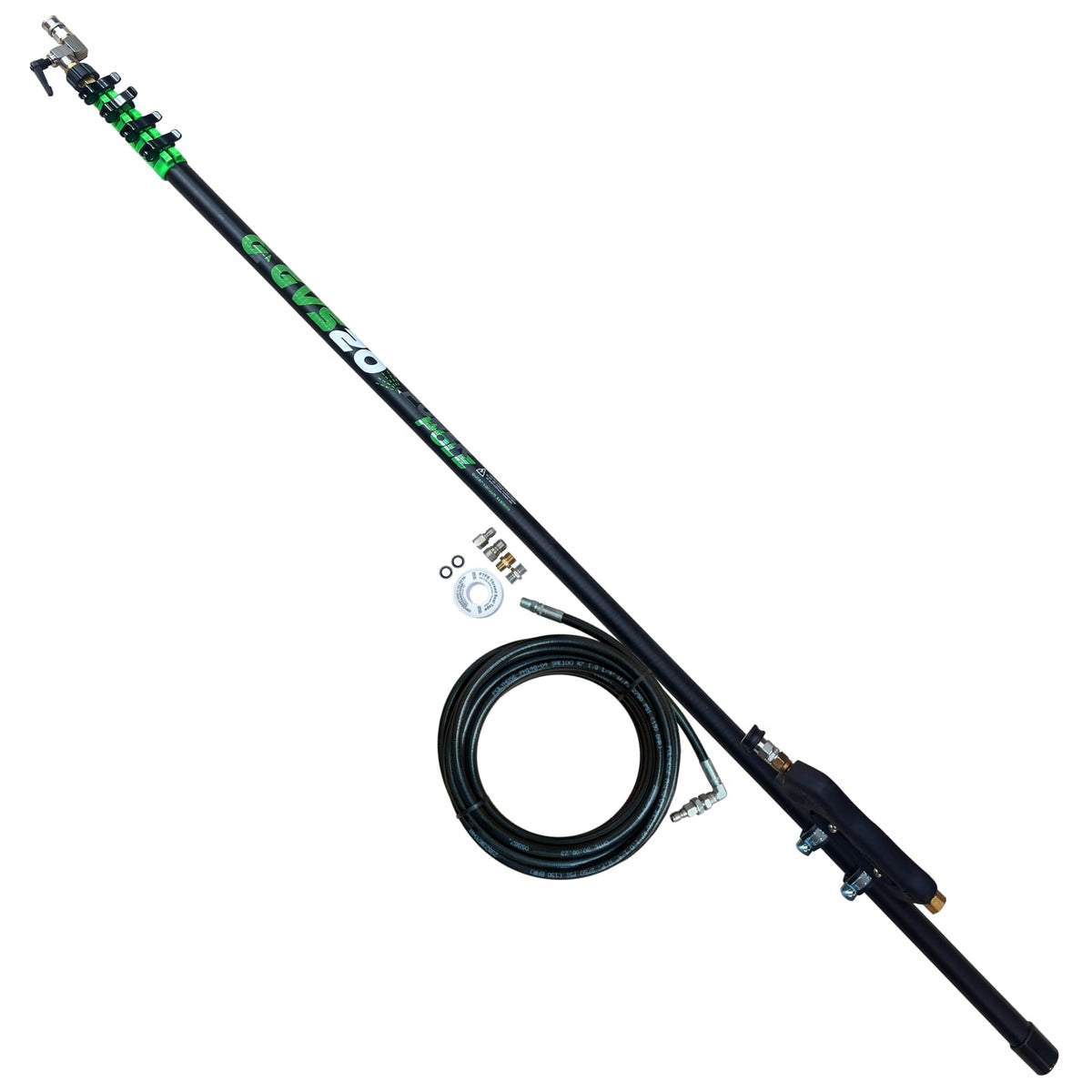

What's Included
- 1 x GVS 20 Pressure Pole - 20ft extended, 100% carbon fibre
- 1 x high-pressure hose in your selected type and length

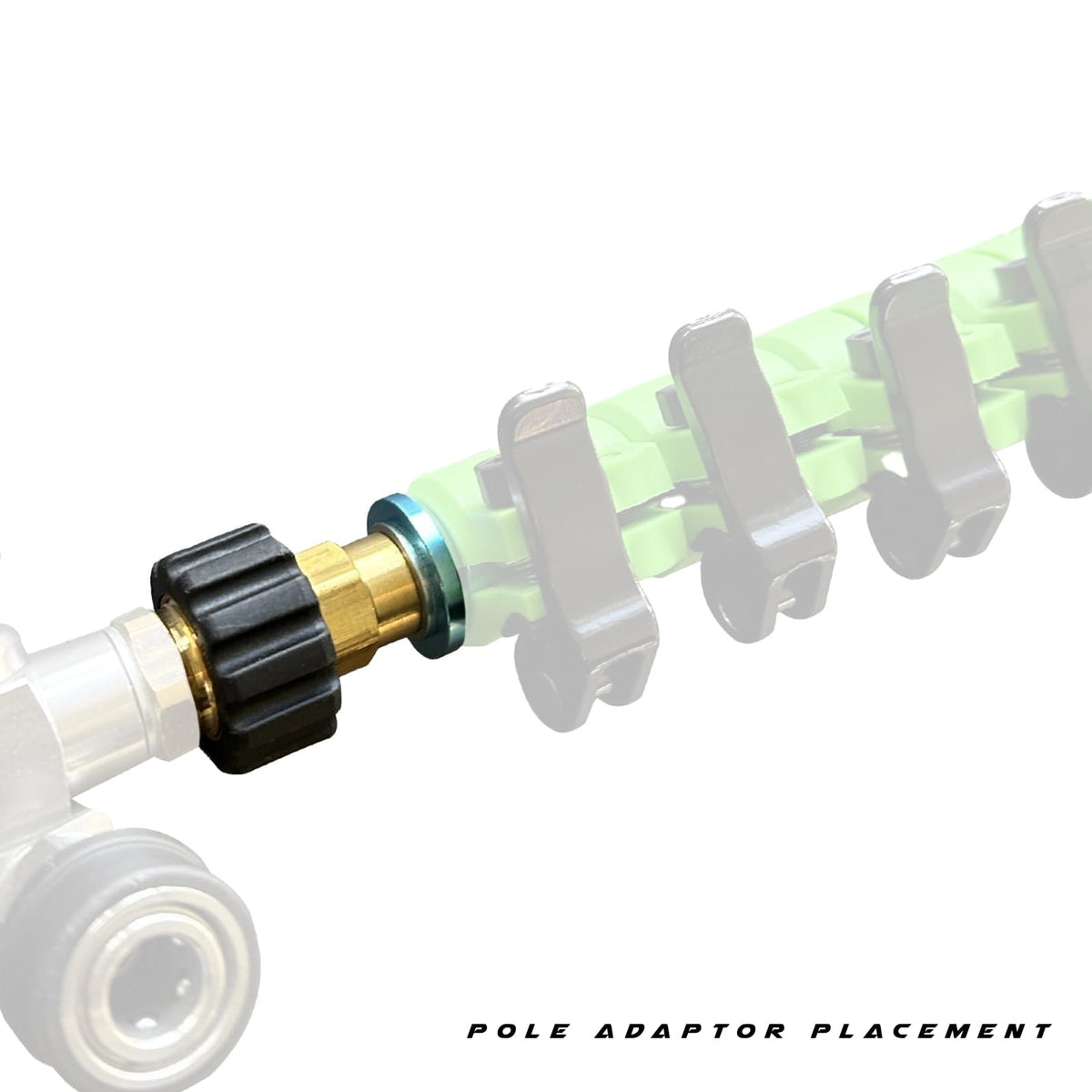

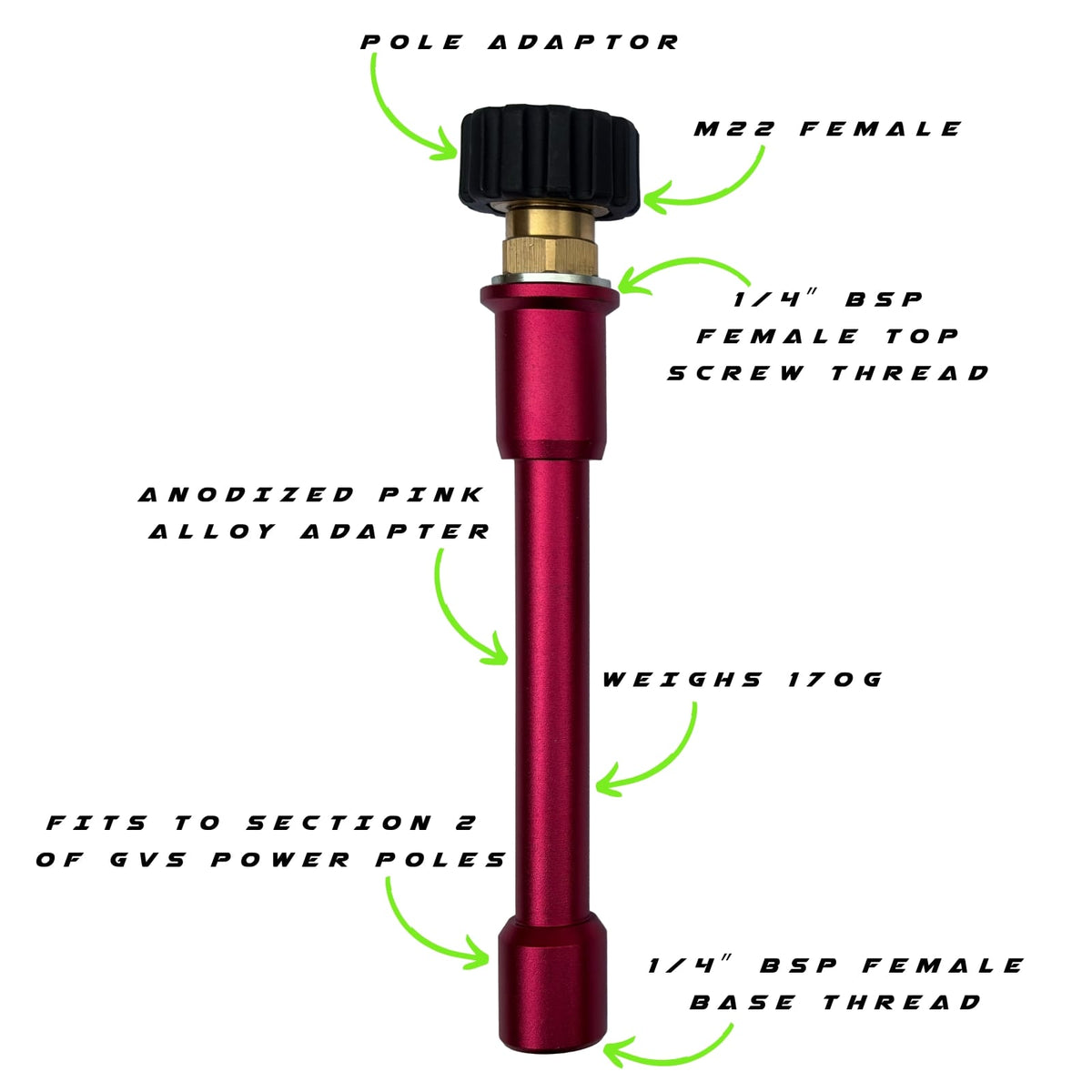

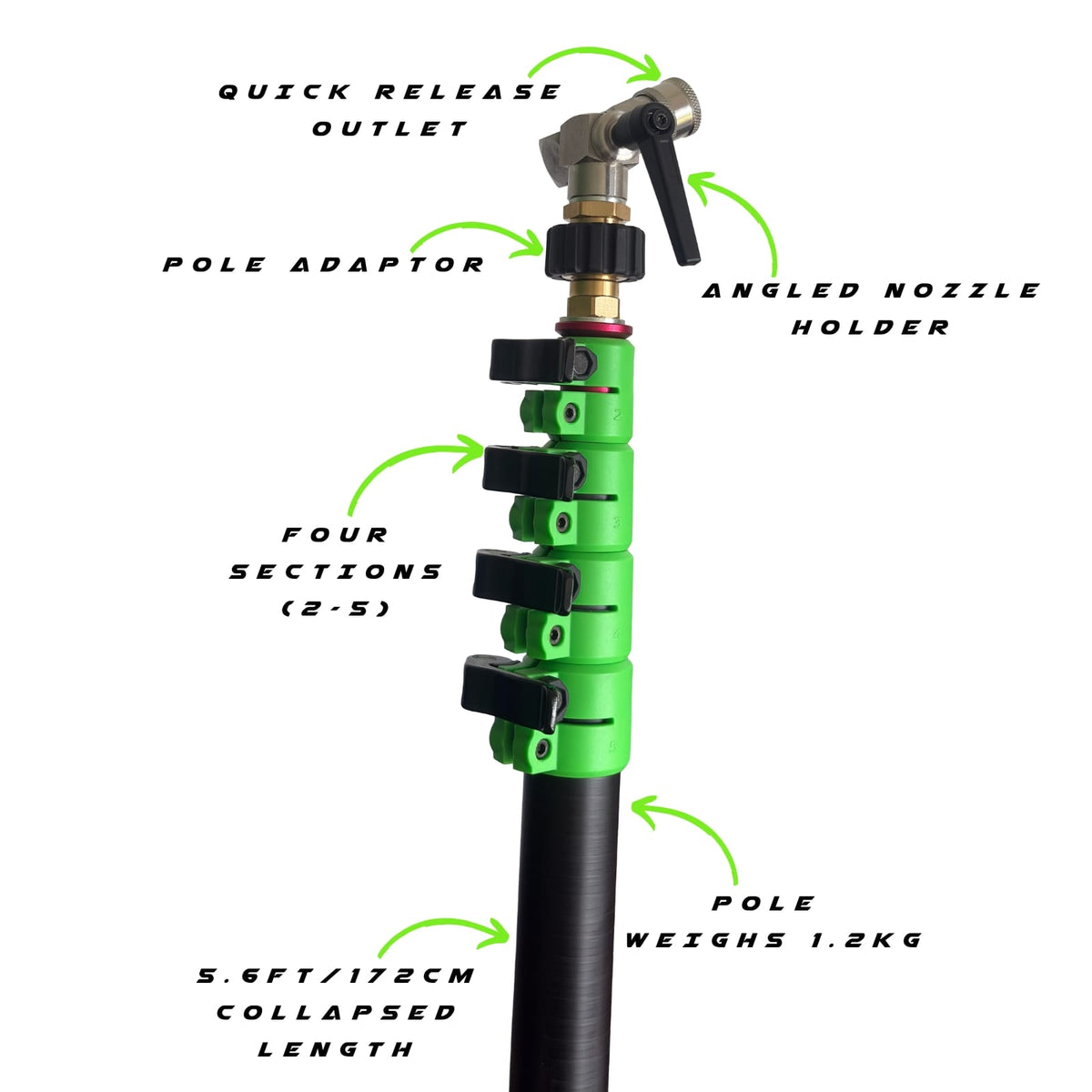

- 1 x anodised pole adaptor - 22mm outside diameter

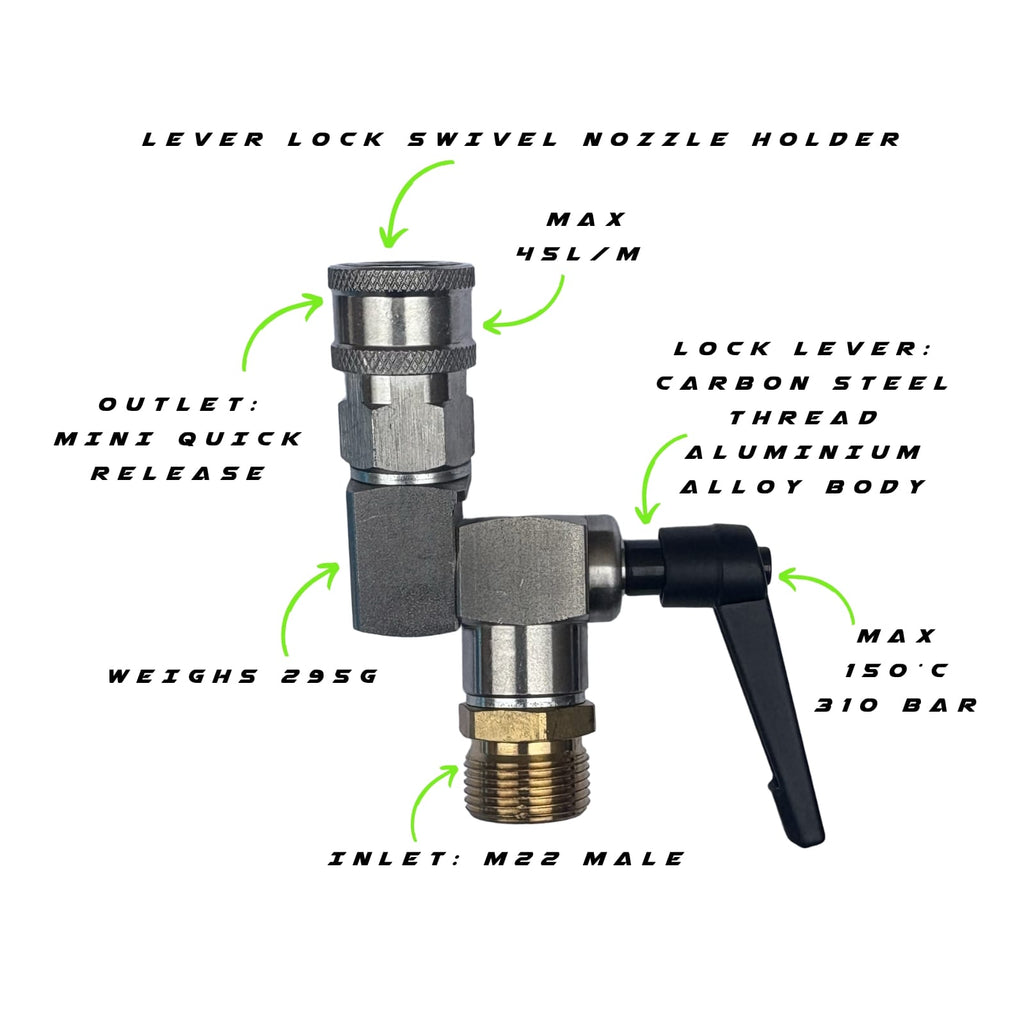

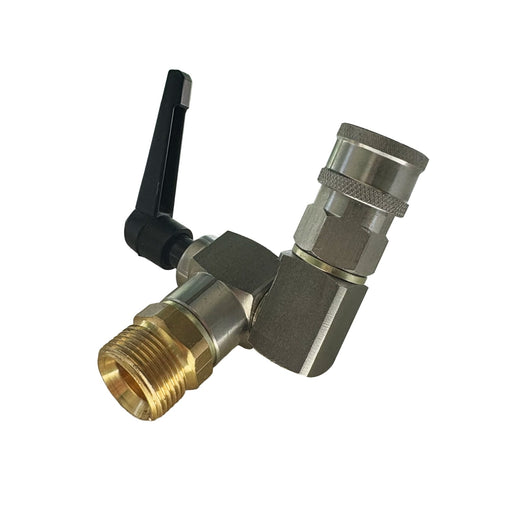

- 1 x adjustable angled nozzle holder - M22 inlet and quick-release outlet

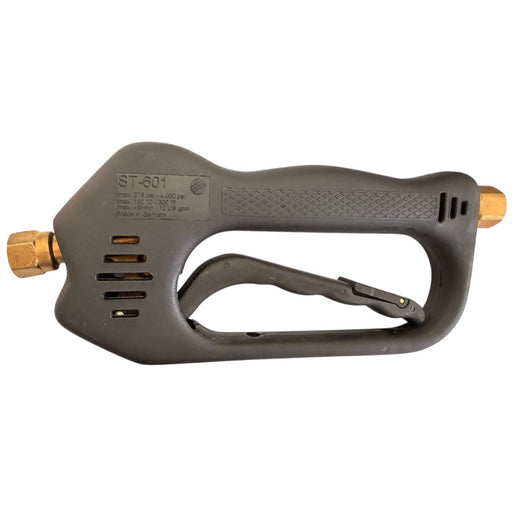

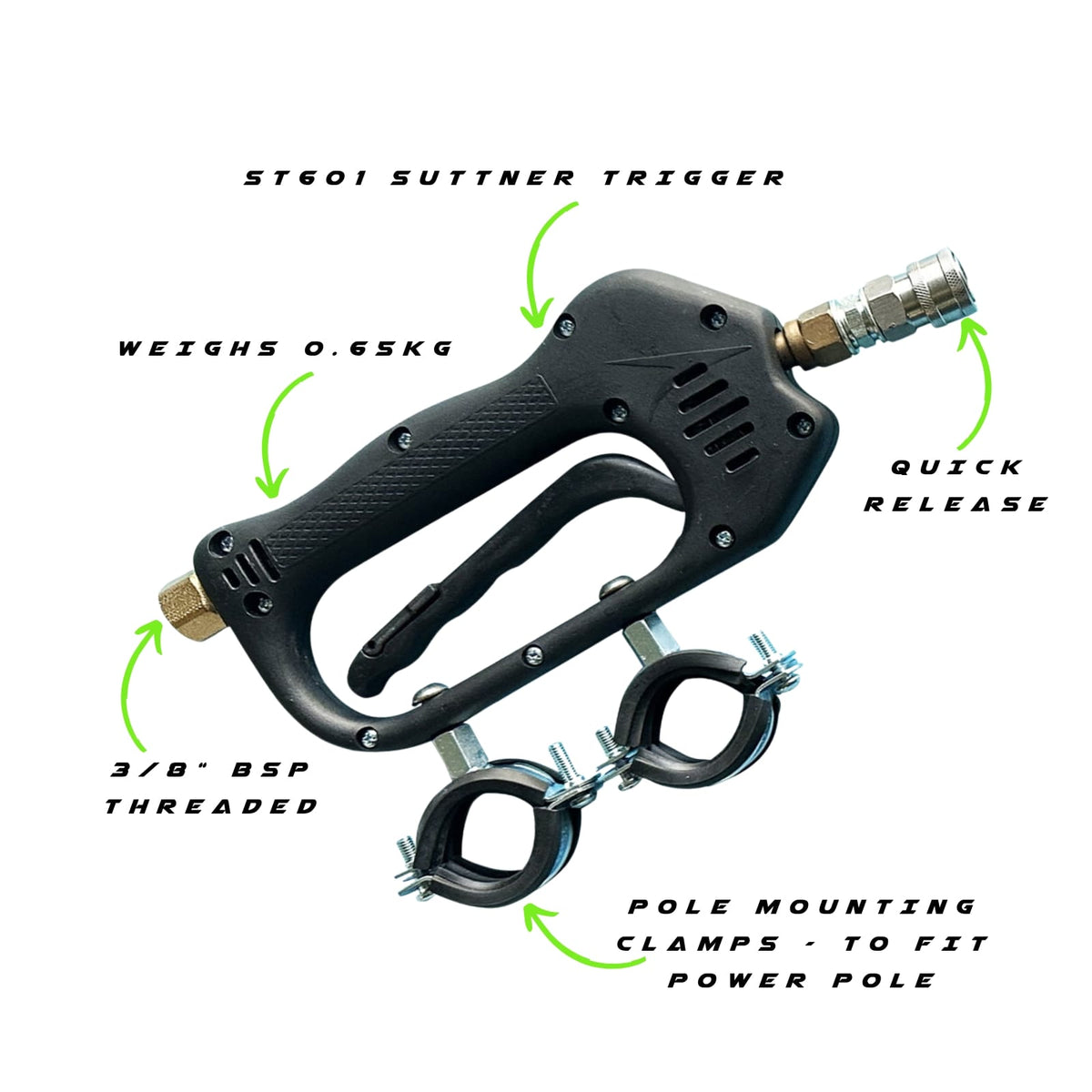

- 1 x ST601 Suttner inline pole trigger with mounting clamps

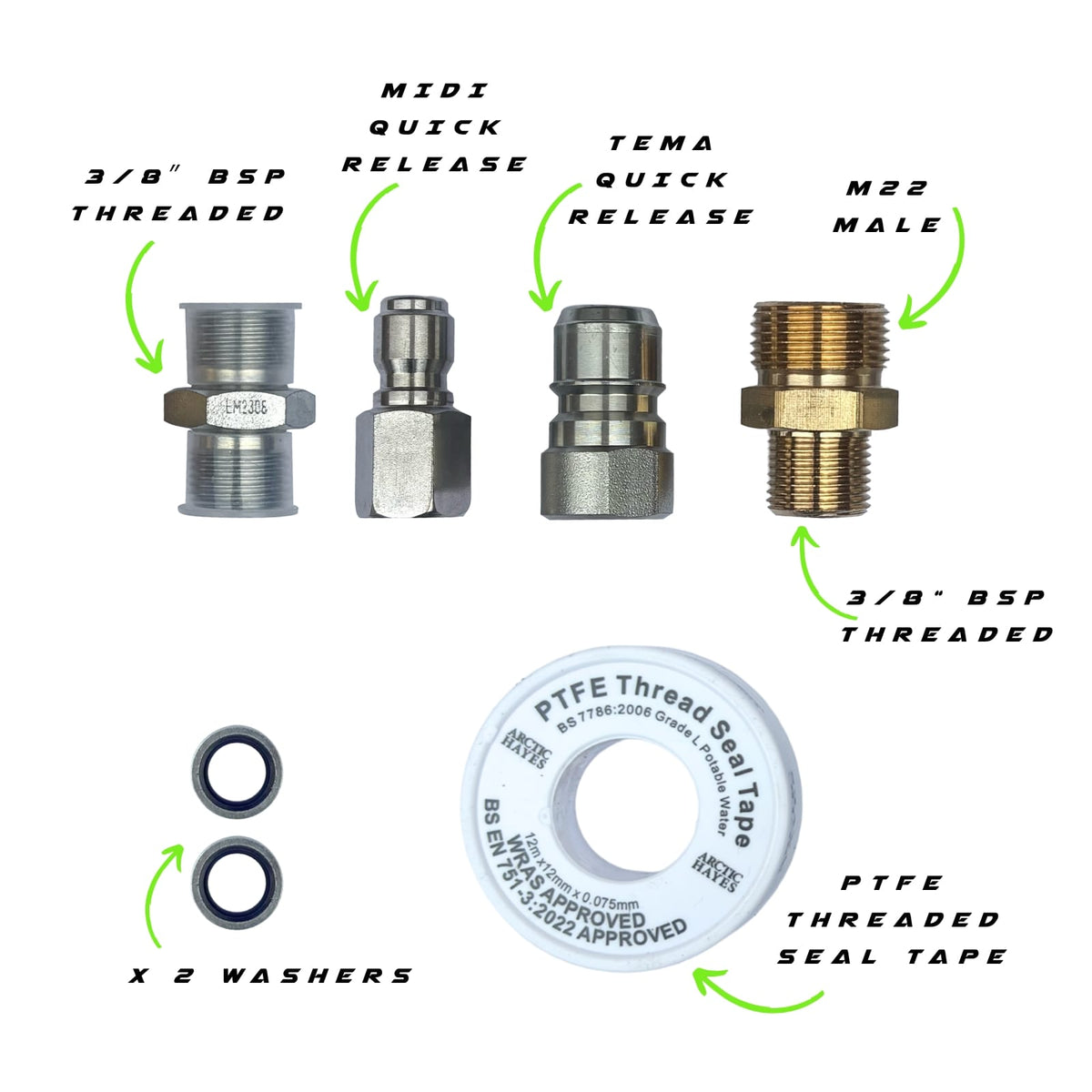

- Inlet fittings for common pressure-washer connections, including M22 male, TEMA Quick Release, 3/8″ BSP threaded and MIDI Quick Release

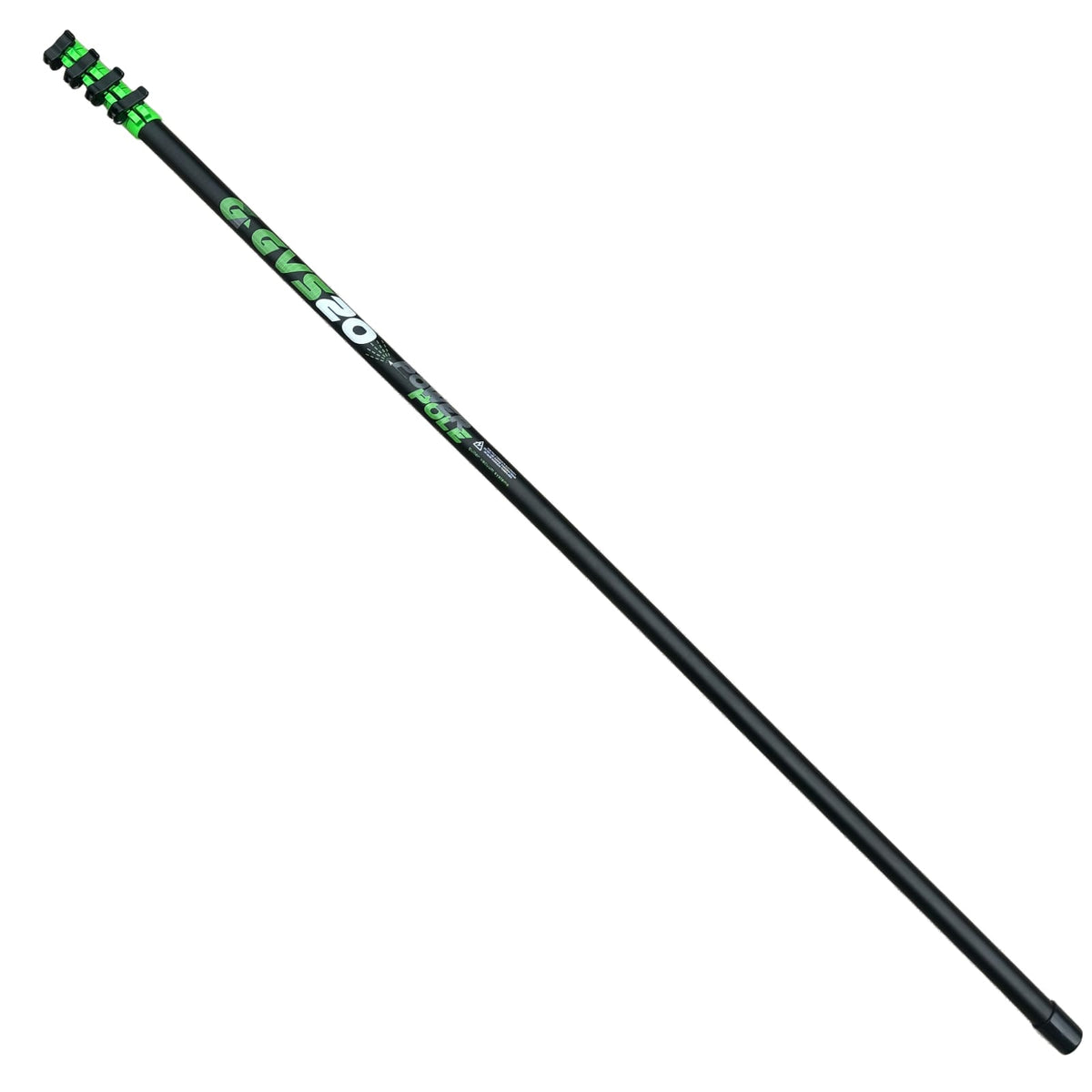

20ft Pressure Pole Specifications
- 100% carbon-fibre construction
- 4 pole sections (sections 2 to 5), matt finish
- Metal locking levers
- Weight: approximately 1.2kg (pole only)
- Fully extended length: 20ft
- Collapsed length: approximately 172cm (5ft 6in)
Pressure Washer Compatibility
Check that your pressure washer, hose, nozzle and inlet connections are compatible before ordering. The hose pressure and temperature ratings differ between the standard and green lightweight options. The kit does not include a pressure washer.
